نام محصول:
مفصل دوار نفتی
نام انگلیسی:

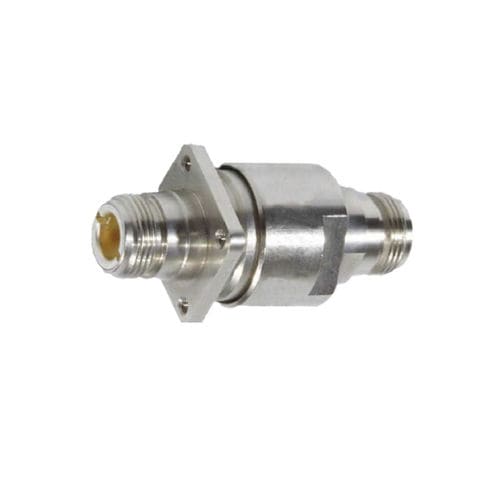

Oil rotary joint LPHF-01H
برند:
JINPAT Electronics Co., Ltd.
مشخصات:
Part Number: LPHF-01H
Interface Type: N-F(50Ω)
Frequency Range: DC-18GHz
VSWR, Max: 1.2@DC-10GHz /1.3@10-18GHz
VSWR WOW: 0.05
Insertion loss,Max.: 0.2dB@DC-10GHz/0.3dB@10-18GHz
Insertion loss WOW: 0.05dB
Peak Power, Max.: 1500W
Average Power, Max: 200W@1GHz/70W@18GHz
Phase WOW, Max: 2°
Maximum speed: 300rpm
Lifespan: 5 Million Revolutions
Axial load on Interface, Max: ±8N
Radial Load on Interface, Max: ±8N
Body Material: Stainless Steel
Insul ator Material: PTFE
Marking: Adhesive marking
Weight: 150g
IP Protection Level: IP54
Storage Temperature: -55~+80°C
Operation Temperature: -40~+70°C
Humidity (Storage) 95%
Humidity (Operation) 95%
Continuous Rotational Torque: 30Ncm Max
Starting Torque: 30Ncm Max
توضیحات:
Medium
for oil
Other characteristics
high-speed
Rotational speed
Max.: 300 rpm(1,884.96 rad.min-1)Min.: 0 rpm(0 rad.min-1)
