نام محصول:
مفصل دوار بخار
نام انگلیسی:

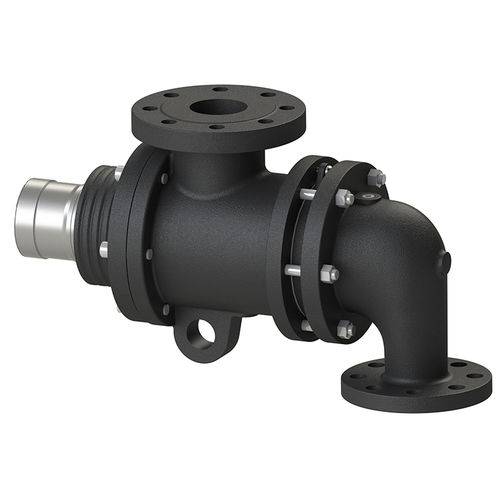

Steam rotary joint ELSX™
برند:
Kadant Johnson Europe B.V.
مشخصات:
Now available for the European market
Run Faster, Longer, More Reliably
Tailored for steam and thermal oil applications, this innovative solution addresses key customer needs and sets new standards in reliability, durability, and operational efficiency.
Here are the key customer insights that drove the development of the ELSX:
– Increasing run rates demand higher performance
Producers are pushing the boundaries of speed and pressure to enhance production. The ELSX rotary joint offers up to a 20% increase in combined pressure and speed capability in steam applications, surpassing its predecessor, the ELS.
– Longevity is non-negotiable
Paper mills prioritize durability, and when choosing new components, life extension is a key aspect. The ELSX boasts an increase in wearable seal material, achieved through a new convex seal design that reduces contact pressure and wear rate. The result? Up to 15% more wear life in steam applications.
– Reduced Maintenance
Maintenance is reduced with the ELSX rotary joint. Wider support guide separation enhances stability, while an increased carbon guide wear surface extends the guide’s life. This translates to less maintenance and reduced downtime.
Technical Specifications:
The ELSX rotary joint sets new standards in safety, reliability, durability, and operating performance.
Steam Applications
Maximum Design Speed: 300 RPM
Maximum Design Pressure: 300 psi (10 bar)
Maximum Design Temperature: 500°F (260°C)
Thermal Oil Applications
Maximum Design Speed: 300 RPM
Maximum Design Pressure: 150 psi (10 bar)
Maximum Design Temperature: 650°F (343°C)
توضیحات:
Medium
for thermal oil, for steam
Number of passages
2-passage
Applications
high-pressure, high-temperature
Material
steel
Other characteristics
flange, high-speed
Rotational speed
Max.: 300 rpm(1,884.96 rad.min-1)Min.: 0 rpm(0 rad.min-1)
Pressure
Max.: 20 bar(290 psi)10 bar, 300 barMin.: 0 bar(0 psi)
Nominal size
Max.: 3.5 inMin.: 2 in
