نام محصول:
مفصل دوار آب
نام انگلیسی:
Water rotary joint R series
برند:
Johnson Fluiten
مشخصات:

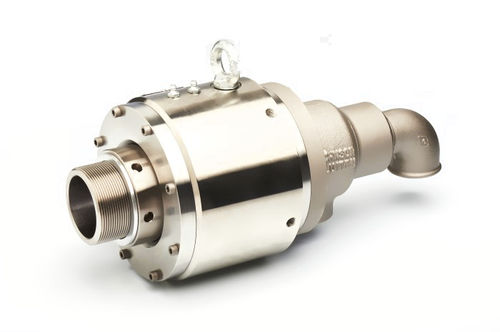

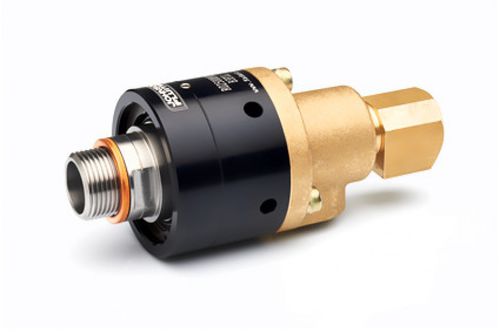

The Type R Rotary Joints are manufactured with damage-resistant materials. The materials used by the type R rotary joints are brass and stainless steel. These joints are specifically designed for services that is linked to the air, thermal oil and water. This device has a full-flow feature that provides higher flow rates that results in to the decreased limits.
In addition, the rotary joints are available in both single flow and double flow settings. This prouduct gives sizes that ranges from 3/8 up to 6 inches.
توضیحات:
Medium
for water
Number of passages
2-passage
Material
brass, stainless steel
Other characteristics
ball bearing
Rotational speed
Max.: 3,000 rpm(18,849.56 rad.min-1)Min.: 1,500 rpm(9,424.78 rad.min-1)
Pressure
Max.: 50 bar(725 psi)Min.: 10 bar(145 psi)
Nominal size
Max.: 150 mm(5.906 in)Min.: 9 mm(0.354 in)
