نام محصول:
مفصل دوار آب
نام انگلیسی:

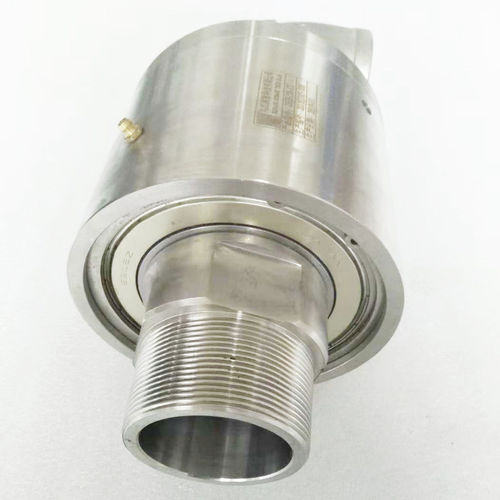

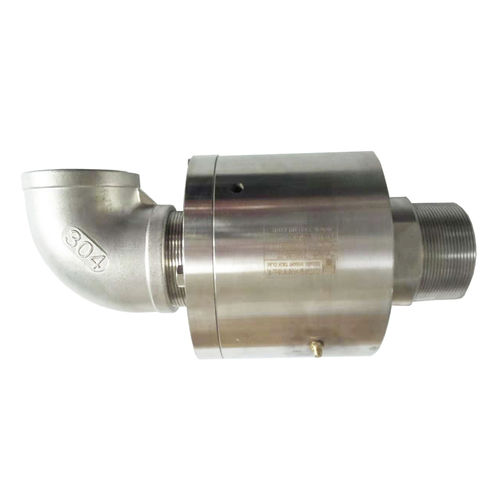

Water rotary joint DHS156-1Y
برند:
JiuJiang Ingiant Technology Co.,Ltd
مشخصات:
Item reference number: DHS156-1Y
Diameter: 156mm
Transmission media: water / oil
Material: Stainless steel
Connection type: screw thread
Pressure: 10~20KG, can be customized
Working speed: 0~60RPM
Working temperature: -10~90 centigrade
Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform.
It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside port rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding.
توضیحات:
Medium
for water, for air, for oil, for gas, for steam, for vacuum, for chemicals, for food products, for sludge
Number of passages
multi-passage
Material
aluminium, brass, bronze, cast iron, stainless steel
Other characteristics
radial, dual-flow, single flow, shaft-mounted, ball bearing, screw-in, multi-function, high-speed, with seal, custom, flange, high-flow
Rotational speed
Max.: 1,000 rpm(6,283.19 rad.min-1)100 rpm(628.32 rad.min-1)Min.: 0 rpm(0 rad.min-1)
Pressure
Max.: 10,000 bar(145,038 psi)50 bar(725 psi)Min.: 0 bar(0 psi)
Nominal size
Max.: 800 mm(31.496 in)135 mm(5.315 in)Min.: 20 mm(0.787 in)
