نام محصول:
مفصل دوار آب
نام انگلیسی:

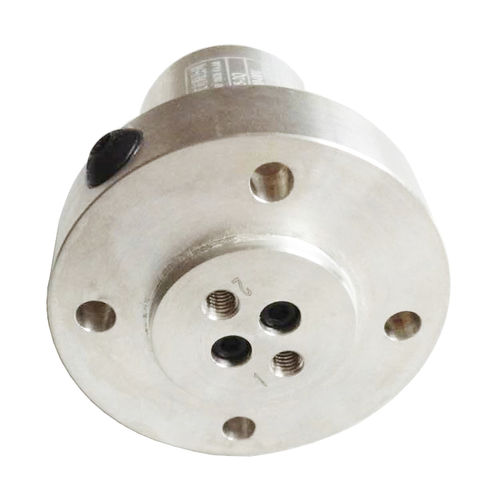

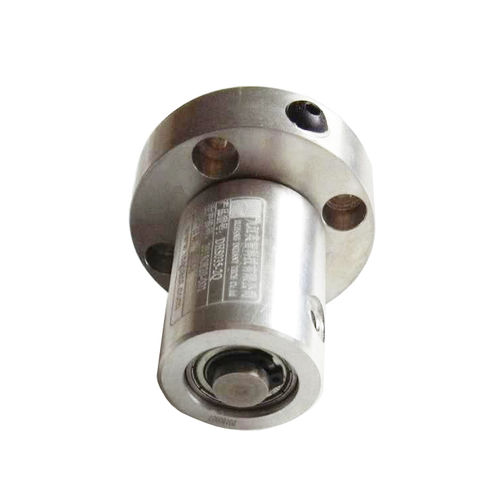

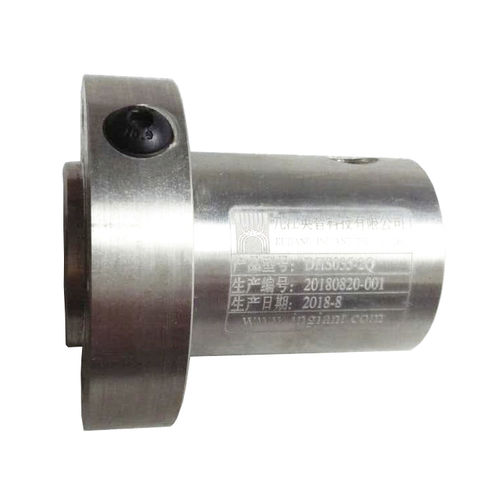

Water rotary joint DHS035-2Q
برند:
JiuJiang Ingiant Technology Co.,Ltd
مشخصات:
Item No: DHS035-2Q
ID: 35mm
Working pressure: 0~2.0Mpa
Working speed: 0~200rpm
Path number: 2 in 2 out
Slip ring rotary joint is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform.
It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside port rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding.
توضیحات:
Medium
for water, for compressed air, for hot oil, for gas, for steam, for vacuum, for food industry applications, for sludge
Number of passages
multi-passage
Material
stainless steel
Other characteristics
screw-in, with seal, flange
Rotational speed
200 rpm(1,256.64 rad.min-1)Max.: 1,000 rpm(6,283.19 rad.min-1)Min.: 0 rpm(0 rad.min-1)
Pressure
20 bar(290 psi)Max.: 10,000 bar(145,038 psi)Min.: 0 bar(0 psi)
Nominal size
35 mm(1.378 in)Max.: 500 mm(19.685 in)Min.: 20 mm(0.787 in)
