نام محصول:
مفصل دوار آب
نام انگلیسی:
Water rotary joint 300/GR series
برند:
Farbo
مشخصات:

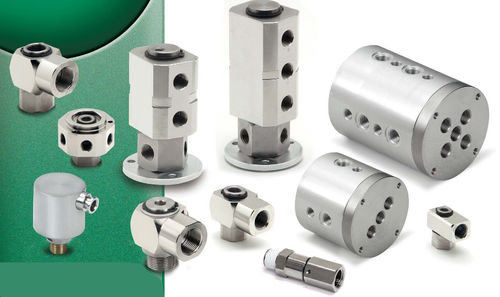

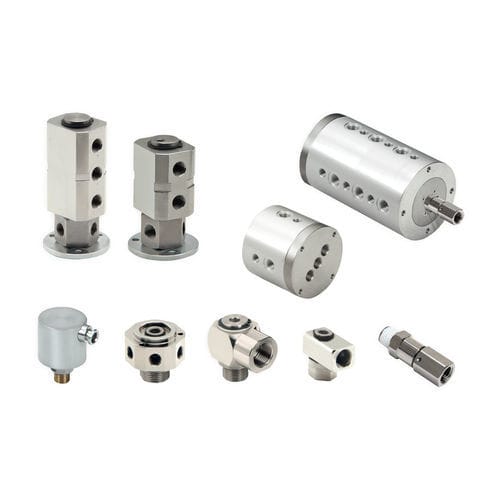

FARBO rotating joints, up to six independent ways, represent a valid solution for fluid distribution problems in rotating machinery. The right choice of materials and the special gaskets garantee a long lasting working life even with speed up to 550 RPM for simple versions and up to 2000 RPM for more elaborated versions with ball bearing. Range is completed by versions with Viton@ gaskets for high temperatures and for vacuum or water applications. Special versions on request provide solutions
up to 16 independent ways, with pneumoelectrica/ connections or outlet for cabling too.
توضیحات:
Medium
for water, for vacuum
Number of passages
multi-passage
Other characteristics
ball bearing
Rotational speed
Max.: 550 rpm(3,455.75 rad.min-1)Min.: 90 rpm(565.49 rad.min-1)
Pressure
Max.: 12 bar(174 psi)Min.: 0 bar(0 psi)
