نام محصول:
مفصل دوار آب
نام انگلیسی:

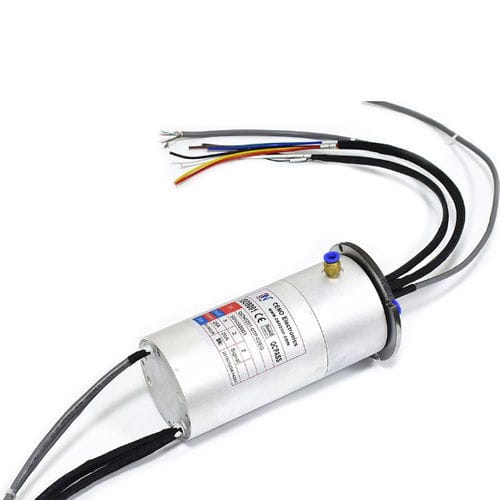

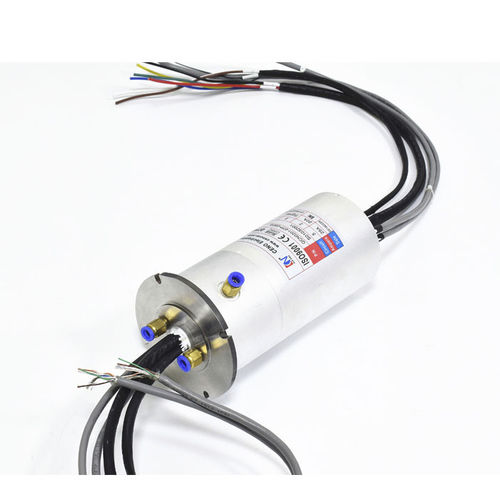

Water rotary joint QCN0201-07P-02EG
برند:
CENO Electronics technology Co., Ltd
مشخصات:
A rotary union is sometimes referred to as an electrical rotary union, rotary valve, swivel union, hydraulic coupling, pneumatic rotary union or vacuum rotary union. It transmit water, oil and some chemical liquid media e.c.t . Both air and liquid rotary union are in rotary union series.
• Current : 5*25A; 2*20A; 2 group 1000M Ethernet signal
• Insulation resistance : ≥500MΩ@500VDC(current) ≥100MΩ@100VDC(signal)
• Dielectric strength : –
≥1500V@50hz(current)
≥500 V@50hz(signal)
• Resistance fluctuation : ≦10mΩ(with150rmb running)
• Contact Material : Precious Metals
• Operating temperature : 20℃~+60℃
• Channel number : 2
• Connector size : G1/8
• Max pressure : 1 MPa
• Pipe size : Ø8mm
توضیحات:
Medium
for water, for oil, for air, for gas
Applications
pneumatic, industrial, for pipes
Other characteristics
high-speed, with electrical slip ring
Rotational speed
Max.: 100 rpm(628.32 rad.min-1)Min.: 0 rpm(0 rad.min-1)
Pressure
1 MPa
Nominal size
8 mm(0.315 in)
