نام محصول:

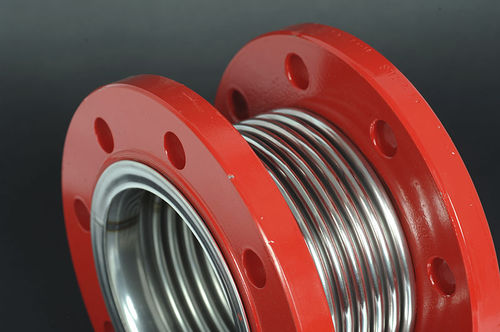

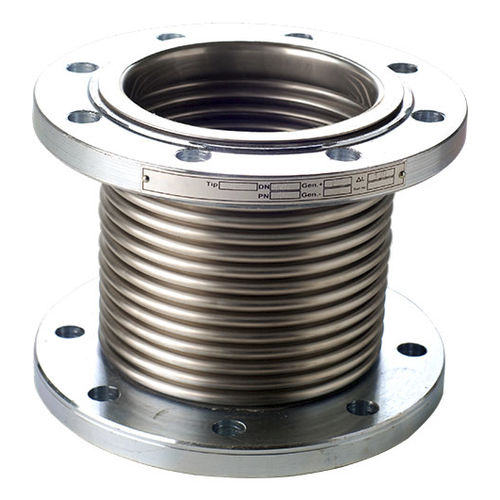

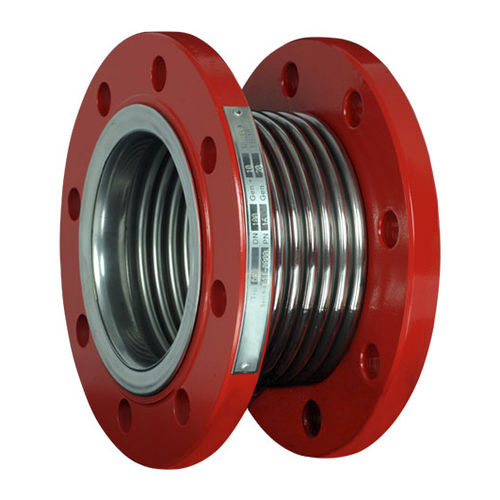

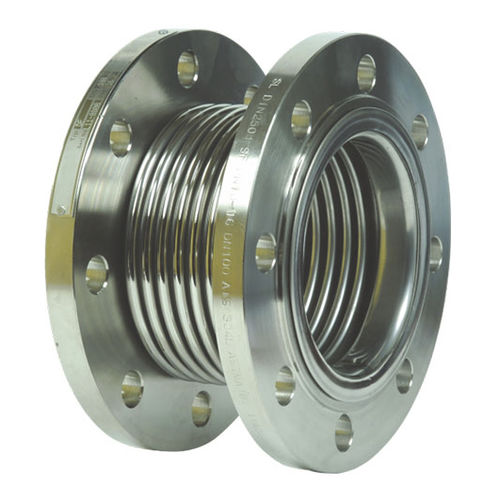

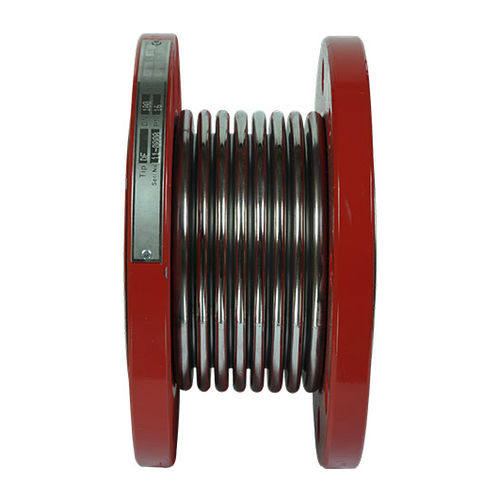

مفصل انبساط لوله محوری
نام انگلیسی:
Axial pipe expansion joint
برند:
Totalien Endustriyel Urunler Sanayi limited Sirketi
مشخصات:
Axial expansion joints are designed to compensate axial movements (extension and compression) in its longitudinal axial direction due to thermal expansions and absorb the mechanical vibrations and reduce sound on pipe line systems (pumps, compressors, fans).
The standard expansion values of axial expansion joints (metal bellow expansion joints) are 30 mm and 60 mm. Upon customer request special expansion values and sizes will designed and produced. If smoothness is needed or if high frequency vibrations or turbulence are expected in the flow media Axial Expansion Joints (Metal Bellow Expansion Joints) should be used with Liner. Liner material also can able to eliminate resonance caused by the fluid passing trough the bellows and minimize the contact surface of the fluid. Contact surface of the expansion joint can be minimized by using axial expansion joints with liner.
Application of Axial Expansion Joint
Cold & Hot Water Pipelines
Steam Lines
Ship Building & Marine Applications
Central Heating & Cooling Applications
Boiler, Pressure Vessel & Hear Exchanger Applications
Exhaust Systems
Oil & Gas Pipeline Systems
Industrial Applications
Technical Features
Bellow Material – Stainless Steel AISI304(Opt. AISI316, AISI321)
Intermediate Pipe Material – Carbon Steel St37.2(Opt. AISI304, AISI316)

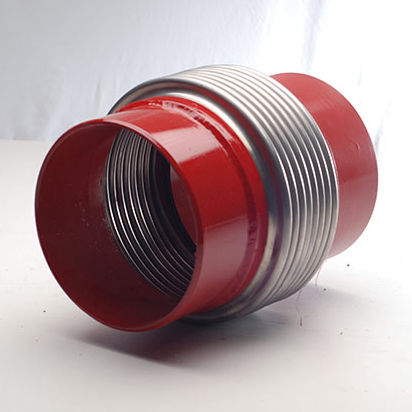

Connection Types – Fixed Flanged, Loose (Rotatable) Flanged, Weld Neck End
End Material – Carbon Steel St37.2 (Opt. AISI304, AISI316)
Design – EJMA Standards
توضیحات:
Material
metal
Configuration
round
Installation system
flange
Expansion axis
axial
Applications
for pipes, exhaust
Nominal diameter
Max.: 3,000 mm(118.11 in)Min.: 25 mm(0.98 in)
Operating temperature
Max.: 400 °C(752 °F)Min.: -20 °C(-4 °F)
Pressure
Max.: 64 bar(928.2 psi)Min.: 6 bar(87 psi)
