نام محصول:
مفصل انبساط لوله لاستیکی
نام انگلیسی:

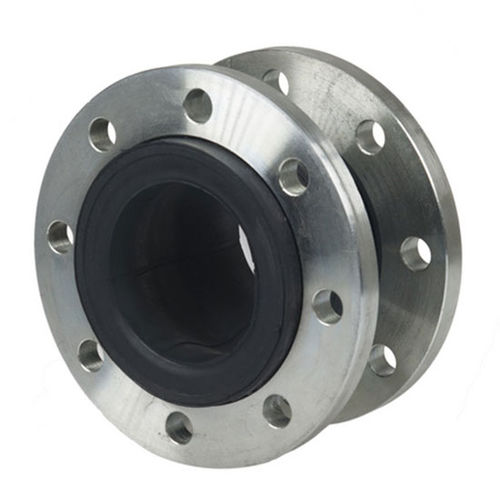

Rubber pipe expansion joint zJOI 700
برند:
ZETKAMA Sp. z o.o.
مشخصات:
Material: EPDM
Working position: Any
Piping systems are subjected to highly demanding conditions, exposing all sections to vibrations, differential pressure and various other kinds of turbulences. To provide an adequate protection, as well as help maintain a proper flow, we prepared rubber expansion joints. They are used also in situations when piping system is being extended or modified. Solutions are easy-to-install, thanks to their ability to operate in any working position.
Each rubber expansion joint is made from galvanized carbon steel flanges, which provides resistance to demanding environmental conditions. It can be applied in systems working with industrial or neutral fluids, glycol, drinking water, compressed air. The product is a perfect safety measure for shipbuilding industry, as well as refrigeration, air conditioning and heating systems.
Features
•galvanized carbon steel flanges
•easy to install
•flanges drilled according to EN-1092-1
توضیحات:
Material
rubber
Configuration
round
Installation system
flange
Applications
for water, for heating, for air conditioning, for industrial applications
Nominal diameter
Max.: 600 mm(23.62 in)Min.: 32 mm(1.26 in)
Operating temperature
Max.: 100 °C(212 °F)Min.: -20 °C(-4 °F)
Length
Max.: 265 mm(10.43 in)Min.: 95 mm(3.74 in)
Pressure
10 bar, 16 bar(145 psi, 232.1 psi)
