نام محصول:
مفصل انبساط لوله لاستیکی
نام انگلیسی:

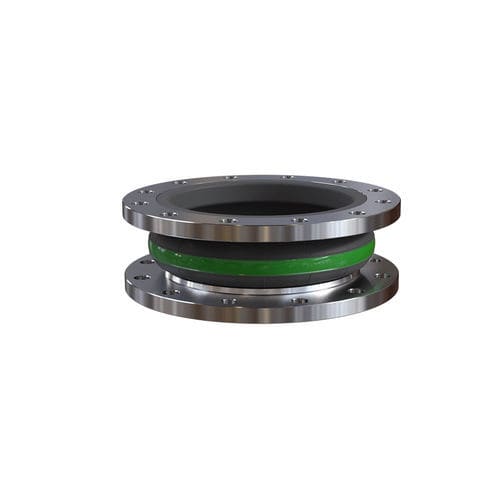

Rubber pipe expansion joint ERV Green
برند:
Trelleborg Antivibration Solutions
مشخصات:
Rotating flanges, galvanized steel
Durable seamless
Hypalon (CSM) outer wall
Electrically non-conductive
INTRODUCTION
The ERV Green rubber expansion joint is used for flexible connections in pipeline systems for chemicals, acids, alkalies, and chemically aggressive wastewater. The flanges of the ERV Green are rotating and standard available in DIN PN10 and PN16. The maximum working pressure is 16 bar or 10 bar for larger diameters. The operating temperature of this expansion joint ranges from -20° to 100 °C. Additionally, the ERV green can also be used for applications with oil-contaminated air with temperatures up to 90 °C.
CONSTRUCTION
Durable seamless Hypalon (CSM) inner wall
PA-textile reinforced bellows
Hypalon (CSM) outer wall
Electrically non-conductive
Rotating flanges, galvanized steel
APPROVALS
Approved by DNV-GL
OPTIONS
Most sizes available in different neutral lengths
Flanges according to DIN PN6, PN25, PN40, ASA 50 lbs or BS10
Flanges in stainless steel or bronze
Tie rods
PTFE lining
Vacuum support rings
Fire protection cover
توضیحات:
Material
rubber, steel, PTFE
Configuration
round
Installation system
flange
Applications
wastewater, for chemicals
Other characteristics
flexible
Nominal diameter
Max.: 600 mm(23.62 in)Min.: 25 mm(0.98 in)
Operating temperature
Max.: 100 °C(212 °F)Min.: -20 °C(-4 °F)
Length
Max.: 200 mm(7.87 in)Min.: 130 mm(5.12 in)
Pressure
Max.: 16 bar(232.1 psi)Min.: 10 bar(145 psi)
