نام محصول:

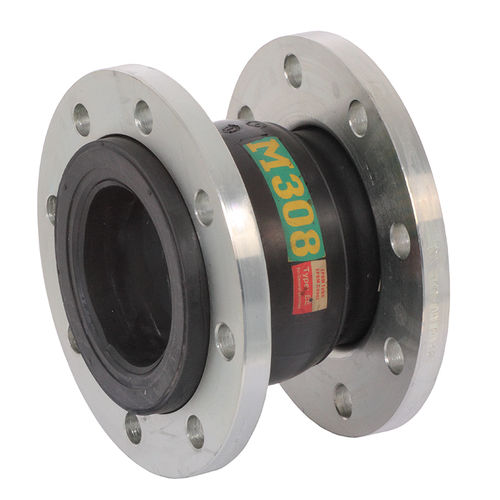

مفصل انبساط لوله لاستیکی

نام انگلیسی:
Rubber pipe expansion joint 308 TIFQ

برند:
Mival

مشخصات:
Before to assemble the joint at the pipeline check inside the body to be completely clean, possible impurities have to be removed in order to ensure a right functioning. If compressed air is at your disposal, use it for a better cleaning. The counter-fl anges of the pipeline must be parallel and have aligned holes. Check the space between them, keeping into account the fl attering of the outside part of the joint, that serve as a gasket, after bolts closing. Fit the bolts in fl anges holes and tighten them maintaining a diametrically opposed sequence (for a better deformation of the outside part of the joint).

NOTE: in case of strong and continuous stresses it is advisable to employ stroke limiter for joints (item 307).

توضیحات:
Material
rubber

Configuration
round

Installation system
flange

Applications
for pipes, for water

Other characteristics
flexible

Nominal diameter
Min.: 32 mm(1.26 in)Max.: 400 mm(15.75 in)

Operating temperature
Min.: -10 °C(14 °F)Max.: 110 °C(230 °F)

Length
Min.: 95 mm(3.74 in)Max.: 265 mm(10.43 in)

Pressure
Min.: 8.8 bar(127.6 psi)Max.: 16 bar(232.1 psi)
