نام محصول:

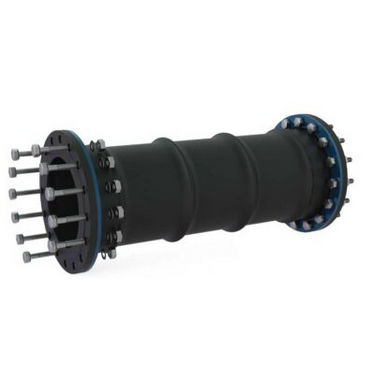

مفصل انبساط لوله لاستیکی

نام انگلیسی:
Rubber pipe expansion joint

برند:
LOCS

مشخصات:
Rubber expansion absorbers are designed to compensate the temperature deformations in main pipelines with an internal from 800 mm

to 1200 mm, for designed operating pressures up to 1.6 MPa. The devices developed and manufactured by us have a unique compensating feature – to deform up to +150 mm, under the above technical conditions of operation of main pipelines. Temperature range of rubber expansion absorbers operation the transported liquid from – 30°C to + 80°C, environment from -40°C to +60°C.

The main purpose of rubber absorbers:

compensation of the main pipeline linear displacement (tension/compression) caused by temperature difference between the environment and conveyed fluid;

compensation of misalignments occurring in pipelines including in those installed the seismically active regions (due to earthquake shocks and ground vibrations resulting in the potential ground subsidence);

facilitating the cross-country laying of main pipeline.

توضیحات:
Material
rubber

Configuration
round

Installation system
flange

Nominal diameter
Max.: 1,200 mm(47.24 in)Min.: 800 mm(31.5 in)

Operating temperature
Max.: 80 °C(176 °F)Min.: -40 °C(-40 °F)

Pressure
16 bar(232.1 psi)
