نام محصول:
مفصل انبساط لوله لاستیکی
نام انگلیسی:

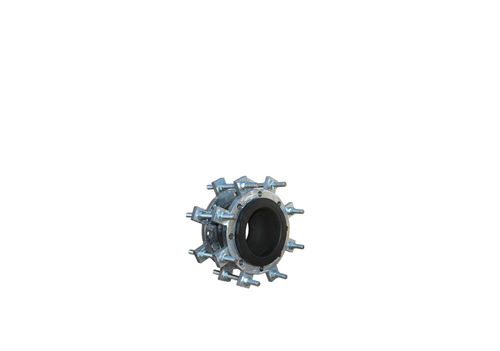

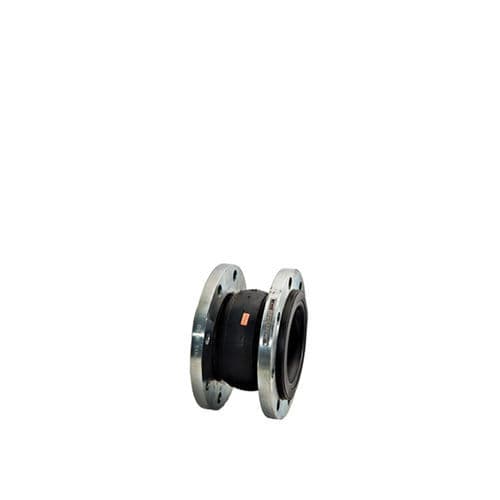

Rubber pipe expansion joint K100
برند:
Doruk Endustri Ltd.
مشخصات:
Available in sizes ranging from DN32 to DN900. Absorb mechanical vibrations cause d by pumps, turbines, compressors and motors. Dampen and insulate against the transmission of noise and undesireable disturbances generated by mechanical equipment. Reduce stress compensating for axial, leteral and angular movements caused by contraction and expansion of pipe lengths due to thermal changes.
توضیحات:
Material
rubber
Configuration
round
Installation system
flange
Expansion axis
axial
Applications
for turbines, for pump, for motors, for compressors
Nominal diameter
Max.: 900 mm(35.43 in)Min.: 32 mm(1.26 in)
Operating temperature
Max.: 90 °C(194 °F)Min.: -10 °C(14 °F)
Length
Max.: 255 mm(10.04 in)Min.: 95 mm(3.74 in)
Pressure
Max.: 16 bar(232.1 psi)Min.: 0 bar(0 psi)
