نام محصول:

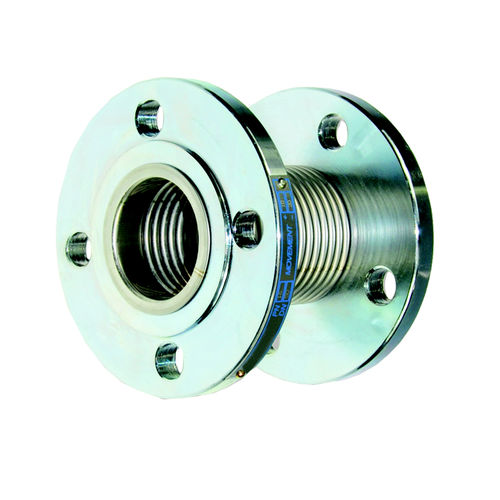

مفصل انبساط لوله فولادی

نام انگلیسی:
Steel pipe expansion joint

برند:
Pacquet Industrie

مشخصات:
Axial expansion joint PN10/16 flanged connection • Standard use applications
Operating conditions

PN10/16 flange dimension zinc electroplated carbon steel
Bellow materials : DIN 1.4541/AISI321
Range +20/-40 mm, 2″ to 12″ – when internal tube is provided
Range +10/-20 mm, 1″1/2 to 12″ – when internal tube is both provided or not
Also comes with rubber or nitrile bellows

1″1/2 to 120″ (lentil-based design > DN 64″)
PN2,5 to PN40
Range 120-200mm ( > 60mm with external pressure-based design)
Materials : DIN 1.4404/AISI 316/DIN 1.4301/AISI304/DIN DIN 1.439/AISI904L (other on request)

Axial range absorption of piping-based apparatus

توضیحات:
Material
steel

Configuration
round

Installation system
flange

Other characteristics
vibration damping, tension-reducing, pressure-balanced

Nominal diameter
Max.: 12 inMin.: 1.5 in
