نام محصول:
مرطوب کننده نبض هیدرولیک
نام انگلیسی:

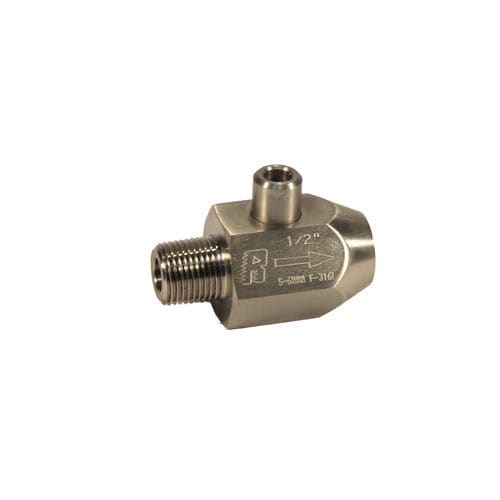

Hydraulic pulsation dampener 92 series
برند:
Redfluid SL
مشخصات:
Dampener valves are designed to control sudden pressure variations to protect the pressure gauges and sensitive measuring elements.
The regulation is performed by a high-precision screw that can adjust the pressure.
Pressure
Versions for high and low pressure.
Connections
They are made in 1/2 and 1/4 threaded connections in BSP and NPT
Materials
Serie AC. Carbon Steel UNE 36011
Serie LA. Brass DIN17600
We manufacture different types of 6000 PSI Pressure Dampener:
The AC and SS series are intended for high-pressure dampers up to 400 bar. The LA series in Brass is for medium and low pressure up to 153 bar.
Nitrile packed (NBR) up to 100ºC (212ºF). Optionally, it can be supplied in Viton (FKM) up to 200 ºC (329 ºF)
Benefits
Even the best manometers and instruments are of no use if damaged or destroyed. The Redfluid pressure dampener provides an economical solution to protect manometers and instrumentation equipment from the effects of sudden pressure variations.
Up to 400 bar or 5000 psi
Protects the most sensitive manometers and instrumentation equipment.
Durable materials resist corrosion, leaks and mechanical damage.
Standards
NPT ANSI/ASME standard B1.20.1
BSP or Cylindrical GAS (DIN 259)
SW (ANSI B16.11)
Materials
Standard Body: F 316/316L 1.4404,
ST 52.3 1.0570,
BRASS 1.7660,
Certifications
EN 10204 3.1
Helium and hydraulically tested according to API 598
توضیحات:
Other characteristics
hydraulic
Body material
stainless steel
