نام محصول:
محفظه فیلتر کیسه ای

نام انگلیسی:
Bag filter housing FBG series

برند:
FBG series

مشخصات:

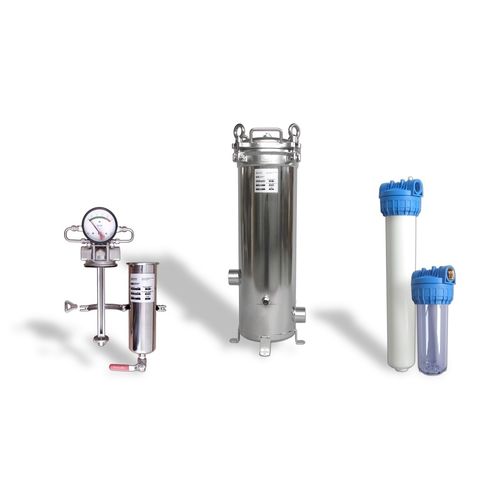

Filter bag housings
made of stainless steel or plastic

From coarse to fine filtration, Sanin Filtertechnik offers a wide range of stainless steel or polypropylene bag filter housings. For almost all areas of solid-liquid separation, our high-quality bag housings guarantee excellent filtration results.

– Flow rates up to 960 m³/h
– Fineness grades from 0,15 to 1800 µm
– Operating pressures up to 16 bar
– Temperatures up to 160 °C

Sizes
– Different housings for filter bags size 1, 2, 3, 4 and 5 (X100)
– Single, duplex and multi-bag filter housings

Connections
– Flange DN 25 – DN 350
– BSP female thread ½“ – 14“
– Other connection types

Materials
– Stainless steel (1.4301, 1.4401, 1.4408, 1.4571)
– Glass fiber reinforced polypropylene

Accessories
– Pressure gauge and venting valve
– Magnetic strainer
– Bag positioner, pressure absorption baskets, bag installation and removal aids, etc.

Applications
– Metalworking (cooling lubricants / oils)
– Electroplating / surface technology (process baths / electrolytes)
– Water and wastewater treatment
– Printing inks / paints / varnishes
– Resins / adhesives
– Foods and beverages

توضیحات:
Filter type
bag

Fluid
for water, for chemicals, beverage, coolant, for wastewater, for oil, for melt

Material
polypropylene, stainless steel

Other characteristics
duplex, high-flow, high-performance, for high-pressure applications, corrosion-resistant

Operating pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.06 psi)

Flow rate
Min.: 0 m³/h(0 ft³/h)Max.: 960 m³/h(33,902.08 ft³/h)
