نام محصول:
محفظه فیلتر کارتریج
نام انگلیسی:
Cartridge filter housing Panelgard™ EX
برند:
Panelgard™ EX
مشخصات:

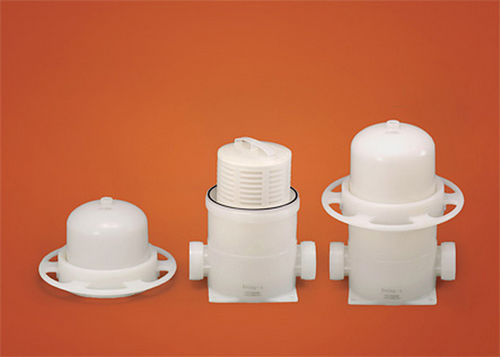

Panelgard™ EX Housing
High-flow rate design for flat panel display applications
Convenient handle to improve cleanliness and safety
Made with high-quality PVDF
PVDF locking ring to properly seat the filter cartridge
Materials:
Housing head: PVDF
Housing bowl: PVDF
O-ring for housing body: Fluoroelastomer (AS568A-375)
Locking ring: PVDF
Connections:
Inlet/outlet: 65A, 50A, or 40A (Reducing sleeve on 50A and 40A）
Vent/drain:
1/2” Rc
Maximum operating conditions:
Maximum operating pressure: 0.69 MPa at 25°C (0.6 MPa at 50°C) (static) PSI equivalents
Maximum operating temperature: 50°C
توضیحات:
Filter type
cartridge
Fluid
for chemicals
Material
PVDF
Operating pressure
690,000 Pa(100.076 psi)
