نام محصول:

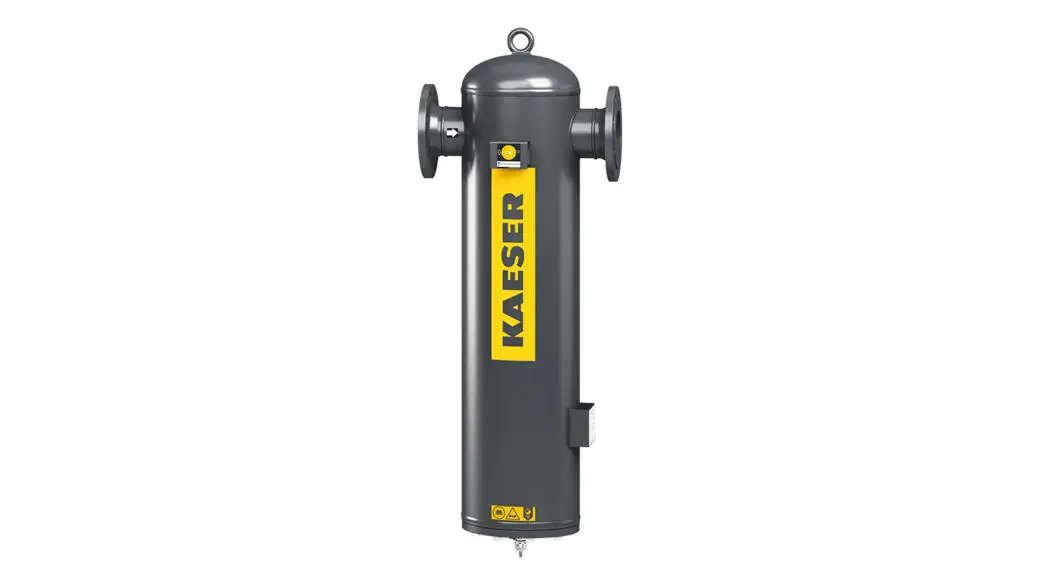

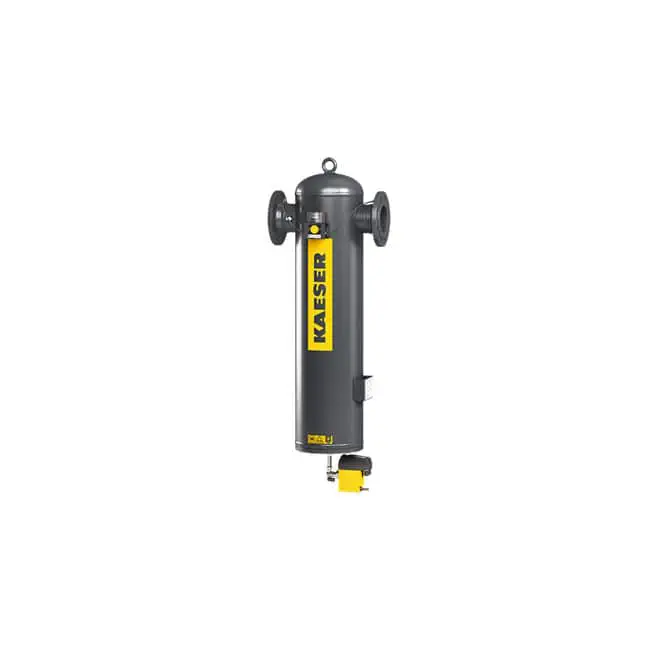

محفظه فیلتر کارتریج سری F
برند:
KAESER Kompressoren
نام انگلیسی:
Cartridge filter housing F series
مشخصات:
Filter type
cartridge
Fluid
for air
Material
steel
Other characteristics
high-performance
Operating pressure
16 bar (232.06 psi)
Flow rate
Max.: 336.3 m³/min (11,876.322 ft³/min)
Min.: 35.4 m³/min (1,250.139 ft³/min)
توضیحات:
KAESER FILTER products are the key components for supplying compressed air of all purity classes as per the ISO 8573-1 standard. The extremely low differential pressure is the result of efficient filter elements and filter housings with generous nominal widths. Both steel housing sides are coated and painted, providing a clean filtration environment and also ensuring a long filter housing service life.
Max. operating temperature 60 °C
Your advantages
Standard-compliant purity:
The KAESER FILTER range uses modern deep-pleated filter media to remove particles and aerosols. A highly effective carbon fibre mat traps oil vapours. The impressive performance data of KAESER FILTER products have been determined in accordance with ISO 12500 and confirmed by the independent German “Institut für Energie- und Umwelttechnik e. V.” (IUTA) testing agency.
Minimal pressure loss, maximum savings:
KAESER FILTER products feature generously dimensioned housings and filter surfaces, innovative flow dynamics and high-performance filter media. They feature up to 50% lower pressure loss than other available filters – a value which remains virtually constant over the entire service life of the filter element. This means lower costs and CO2 emissions as well as reduced load on upstream compressors.
Service-friendly design, straightforward handling:
KAESER FILTER products feature a corrosion-resistant steel housing and a stable filter element.
