نام محصول:

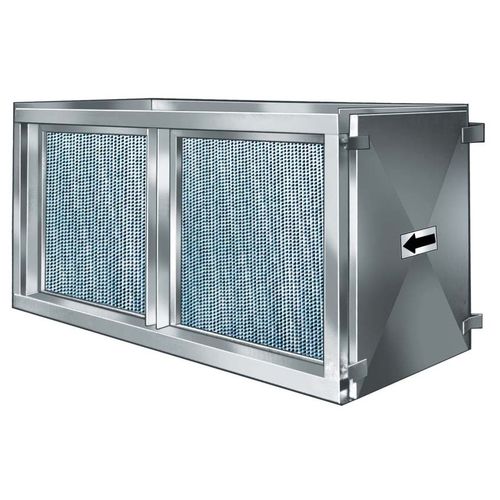

محفظه فیلتر هپا
نام انگلیسی:
HEPA filter housing HEPA
برند:
HEPA
مشخصات:
16 gauge aluminized steel construction
2” pre-filter and 12” box style standard construction
Lever locking mechanism to lock hepa filter
Bolt on doors
Aluminized Steel Extends Life, Enhances Appearance
Standard material of construction is 16 gauge aluminized steel selected to
provide superior corrosion and heat resistance resulting in longer product
life. Appearance is also enhanced compared to galvanized steel construction.
The housings are supplied with two bolt-on doors. The doors are pin type
and crossbroke to withstand positive or negative pressure. They are fully
gasketed with a closed cell neoprene gasket for an air tight seal. The doors are
removable with easy turn hand knobs. HEPA Lock housings are equipped
with a 1-1/2″ outer flange for easy field connection to ductwork.
Air Tight Sealing Mechanism Prevents Bypass
The locking mechanism is operated by overcenter type clamps which force the filters against the channel grid system on the
downstream side of the unit. The spring loaded mechanism maintains a positive pressure of 600 foot-pounds per filter. Standard
units are designed for up to 5″ W.G. pressure, positive or negative.
Minimum Depth Saves in Line Space
Overall depth is only 26″ in direction of air flow with no upstream or downstream access required. The housings accommodate
5-7/8″ or 11 1/2″ deep HEPA filters with a downstream gasket. The units are equipped with a track to hold 2″ or 4″ pre-filters.
توضیحات:
Filter type
HEPA
Fluid
for air
Material
steel
Other characteristics
box-type
