نام محصول:
محفظه فیلتر هپا
نام انگلیسی:
HEPA filter housing
برند:
مشخصات:
Air Filter Housings
Versatile line of Air Filter Housings designed for easy installation into original equipment and retrofit filtration systems.
Standard housings are constructed of 16 gauge steel and can be manufactured to meet specifications in ASHRAE or HEPA applications.
A wide variety of optional features and housing depths.
Single-Stage Side Access Housing
Housings to fit either 2” or 4” filters are available.
The Single-Stage Side Access Housings are ideal for new construction or renovation projects.
All units are constructed of 16 gauge galvanized steel.
Housings are also available in stainless steel, aluminized steel and epoxy coating.
All Single-Stage Side Access Housing units are supplied with two access doors, hinged at the rear of the housing for easy access to the filters.
Each door is gasketed around the perimeter and at the ends of the tracks to prevent air bypass around the installed air filters.
Quick action, positive lockover-center draw latches are used to seal the doors.
Single-Stage housings are equipped with up-stream and down-stream outer flanges for easy connection to ductwork.

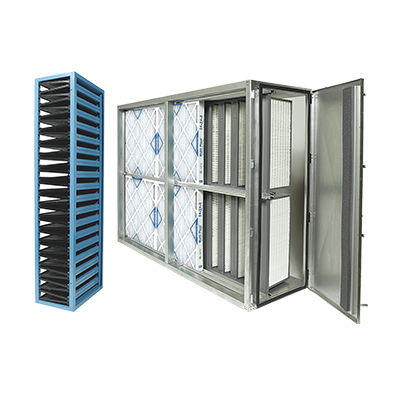

Dual-Stage Side Access Housing
Dual stage housing units can be equipped to accommodate 2″ or 4″ nominal prefilters and final filters with a nominal 1″ header.
Housings come standard with two access doors and outer flanges for easy connection to ductwork.
Koch Filter offers a fully assembled Dual-Stage Side Access Housing available in a wide range of sizes and depths.
Dual-State Housing features:
Gasketed doors and pre-filter and final filter tracks to accommodate a wide selection of Koch filter options
Rugged 16 gauge galvanized construction
توضیحات:
Filter type
HEPA
Fluid
for air
Material
stainless steel, steel
Flow rate
2,000 ft³/min(56.634 m³/min)
