نام محصول:

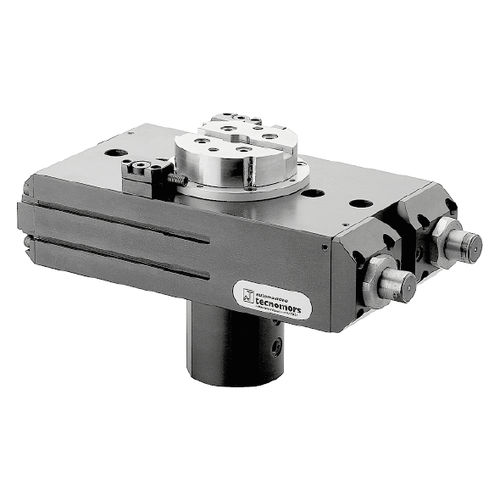

محرک روتاری
نام انگلیسی:
Rotary actuator AR-DIS
برند:
Applied Robotics
مشخصات:
The rotary actuators series “DIS” derive from FAM 2.3 with admixture 4 – ways, integred into the principal spindle, to feed the supplementary objecks in rotating position.
In this model of rotary actuators the “distributor”, where the tubes are connected with supplementary feeding, is joined to the principal spindle and it turns with it.
ADVANTAGES
Spindle rotation, supported on prestressed oblique bearings, is assured by a pair of rack pistons in treated steel.
Rotation angle can be adjusted with precision, with total extra stroke approx. of 2°, through two threaded pushrods and one or two contrast blocks built into the cap (optional).
The stop is made directly on the spindle assuring precision and reliability.
Deceleration is guaranteed by hydraulic shock absorbers, with incorporated cartridge and pressure-tight, with act on the rack piston and the rotation can be controlled via integrated sensors, that detect the magnetic field generated by a rubber magnet ring fixed up one of two rack pistons.
It is possible to have as optional the rotation control with proximity sensors fixed with two external grub screws (to stop the actuator) to detect the spindle position.
All versions has an internal circuit that feeds both sides of the piston (to obtain the maximum torque) connected only on side pneumatically for simplicity and to save space.
The actuators have a predisposition to work eighter with air or with oil.
توضیحات:
Movement
rotary
Type
pneumatic, hydraulic
Technology
piston
Material
steel
Other characteristics
precision, control, integrated, with integrated position sensor, cartridge, threaded, prestressed
Pressure
Max.: 8 bar(116.03 psi)Min.: 4 bar(58.02 psi)
Torque
1.2 daNm, 2.4 daNm, 5.2 daNm, 7.7 daNm(8.851 ft.lb, 17.701 ft.lb, 38.353 ft.lb, 56.792 ft.lb)
Rotation angle
90 °, 180 °
Ambient temperature
Max.: 60 °C(140 °F)Min.: 5 °C(41 °F)
