نام محصول:
محرک دریچه قابل حمل

نام انگلیسی:

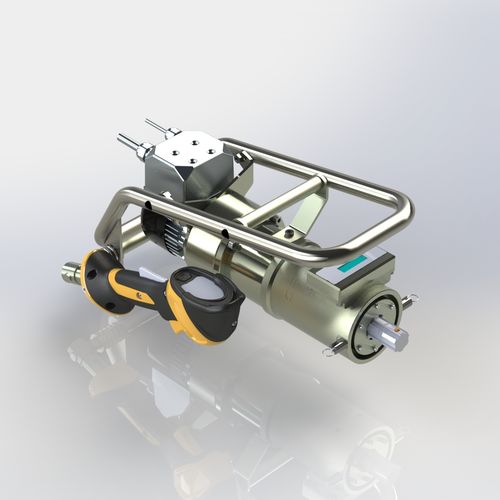

Portable valve actuator JA73

برند:
MODEC

مشخصات:
Battery powered portable valve acatuators

Dedicated to the most demanding applications!

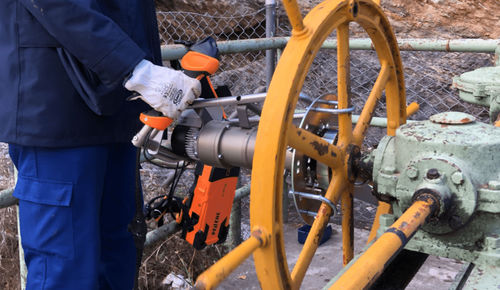

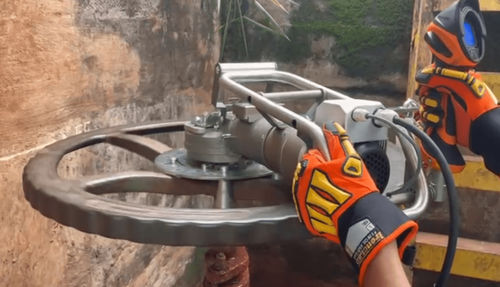

Thanks to its robustness and high autonomy batteries, the JA73 modec electric portable valve actuator is able to deliver a high power for more than one hour continuously.

It does not depend on any energy source (electric plug or compressed air network) and can operate freely anywhere. Much more powerful than its little brother (MC89), it can deliver high speed and high torque simultaneously, which makes it the perfect tool for Heavy duty jobs.

Extremely robust, it has got an integrated clutch system which protects the operator and the equipment, even if a valve is completely blocked. The ergonomic control handle allows the display and control of the many actuator and battery’s functions and parameters in a simple and intuitive way.

The integrated electronic torque limiter (available as standard on all models) allows to adapt to any configuration and further improve the safety of the user and the equipment.

Equivalent protection index IP20

Batteries

Both battery and charger nedd to be ordered separately.

These batteries comes with a light, comfortable harness for use during transport or when using the actuator

توضیحات:
Type
electric

Movement
rotary

Configuration
double-acting

Other characteristics
variable-speed, high-performance, with integrated safety, with angle transfer, for heavy loads, high-speed, with indicator, declutching, for high-torque applications, for high-pressure pipelines, low-noise level, portable, for the nuclear industry

Torque
Min.: 35 Nm(25.81 ft.lb)Max.: 1,080 Nm(796.57 ft.lb)

Voltage
43 V, 44 V

Rotational speed
Min.: 16 rpm(100.53 rad.min-1)Max.: 360 rpm(2,261.95 rad.min-1)

Power
2 kW(3 hp)

Weight
8.7 kg, 9 kg(19.18 lb, 19.84 lb)
