نام محصول:
محرک خطی
نام انگلیسی:
Linear actuator B series
برند:
TOSS GmbH & Co. KG
مشخصات:

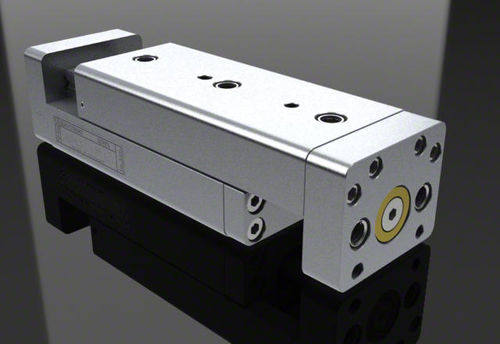

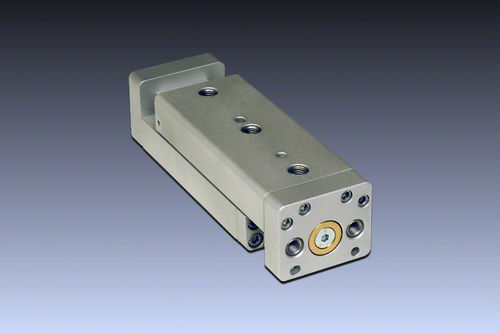

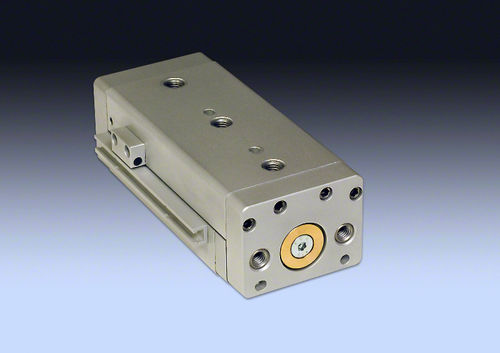

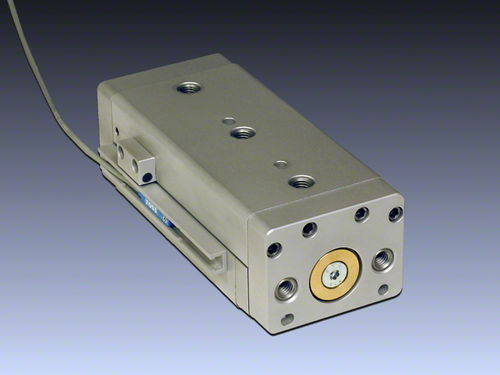

Compact pneumatic actuator with integrated, backlash-free precision ball guide.
توضیحات:
Movement
linear
Type
pneumatic
Configuration
double-acting
Applications
industrial, for medical equipment, for the automotive industry, for process automation, for lifting, for demanding applications, for machine tools, for lifting applications
Other characteristics
compact, precision, low-friction, with integrated guides, backlash-free, fast response time, for integration, with proximity sensor
Stroke
Max.: 200 mm(7.874 in)Min.: 10 mm(0.394 in)
Rod diameter
Max.: 40 mm(2 in)Min.: 8 mm(0 in)
Torque
Max.: 20.32 Nm(14.987 ft.lb)Min.: 0.58 Nm(0.428 ft.lb)
