نام محصول:
محرک خطی
نام انگلیسی:

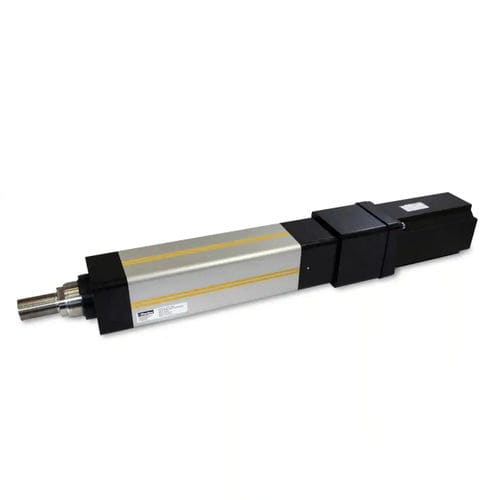

Linear actuator ETH080
برند:
Parker Electronic Controls Division
مشخصات:
ETH080 high force electric screw drive cylinders offer an ISO frame, thrusts to 5643lbs and industry leading thrust/force density. Employing an oversized ball screw & thrust bearing, ETH is ideal for hydraulic and pneumatic cylinder replacement.
Parker’s ETH080 High-Speed High-Force Screw Drive Electric Linear Actuator is a compact, heavy duty cylinder with high thrusts to 5643lbs. Part of the ETH next generation line of electric thrust cylinder products, Parker’s ETH080 is suitable to replace pneumatic and hydraulic cylinders in many applications while simultaneously increasing the reliability of the production process and decreasing overall cost and maintenance. Utilizing a completely new integrated screw drive train and guidance design, the ETH has greatly improved overall thrust capacity within a smaller overall footprint, producing a cylinder with industry leading power density. The ETH is designed to compete with similarly sized roller screw products and offers an energy efficient solution to hydraulic actuation. The new integrated design creates a more durable unit overall that has dramatically increased product life characteristics.
ETH cylinders/actuators are engineered to be extremely user-friendly employing a wide range of configurable options to allow for true application optimization. They can be configured with either inline or parallel motor mounting options to allow for accommodating tighter space constraints. With a standardized ISO footprint, ETH cylinders can be designed into existing fluid power applications, adding programmability and the option of closed loop control as well as high durability and long life.
توضیحات:
Movement
linear
Type
electric, pneumatic, hydraulic
Technology
screw, cylinder
Material
stainless steel
Norms
ISO
Protection class
IP65, IP54, ATEX
Applications
for the automotive industry, for process automation, food, for materials handling
Other characteristics
compact, integrated, high-speed, mechanical, high-force, ATEX
Stroke
Max.: 1,600 µmMin.: 0 µm
Force
Max.: 25,100 NMin.: 0 N
Torque
1.87 Nm, 2.13 Nm, 2.38 Nm(1.379 ft.lb, 1.571 ft.lb, 1.755 ft.lb)
Speed
Max.: 1,707 mm/sMin.: 267 mm/s
Max acceleration
Max.: 15 m/s²(49.21 ft/s²)Min.: 0 m/s²(0 ft/s²)
Ambient temperature
Max.: 70 °C(158 °F)Min.: -10 °C(14 °F)
Repeatability
0.03 mm(0.0012 in)
