نام محصول:

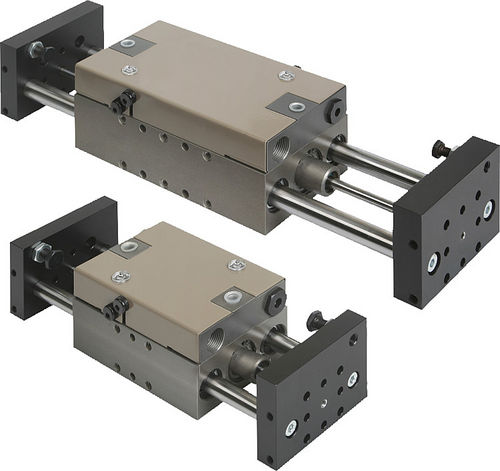

محرک خطی

نام انگلیسی:
Linear actuator 20000

برند:
norelem – Éléments standard mécaniques

مشخصات:
The pneumatic linear modules require less maintenance, because of their durable base body and special construction. The flange plate EN AW-5754, shaft and the body are made of steel. The pneumatic modules are hard-wearing because of hart-coated body and surface finish. The three precise steel shafts and recirculating bushes ball with doffing, reduce the needs of maintenance. Some accessories like tremor absorber, juxtaposition switch and plug connector are available with the unit.

A dual action cylinder is available for pneumatic linear modules. You can fasten the threads in the threaded insert, shock observer and proximity switches to install everything in a vital style. There are no protruding edges and all accessories are available with the modules. The beneficial locking design increases the 100% productivity of the unit. It is available in different sizes and can be used without adapter plates. The possible repeat accuracies are ±0,01 mm and the temperature range is +5aCupto +80 BC. Do not worry about the deviation of stroke, because the locking cartridge will protect your unit.

توضیحات:
Movement
linear

Type
pneumatic

Technology
double-rod

Configuration
double-acting

Material
steel

Stroke
Max.: 300 mm(11.811 in)Min.: 40 mm(1.575 in)

Force
Max.: 1,080 NMin.: 25 N
