نام محصول:
محرک خطی
نام انگلیسی:

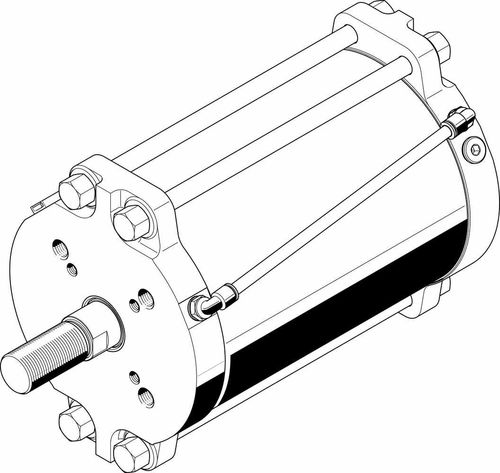

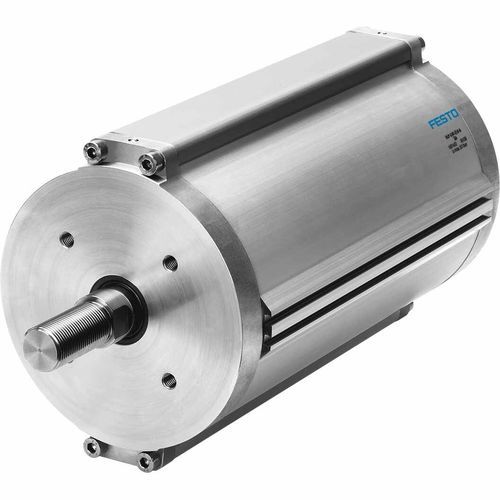

Linear actuator DLP
برند:
FESTO
مشخصات:
Ideal for use in water, wastewater, industrial water, process water, and bulk goods systems, as well as the silo and paper industries: the linear actuator Copac DLP.
• Mounting interfaces for fittings to DIN EN ISO 5210
• NAMUR port pattern for solenoid valves to VDI/VDE 3845
• Integrated air supply
• High corrosion resistance
• As per EU explosion protection directive (ATEX)

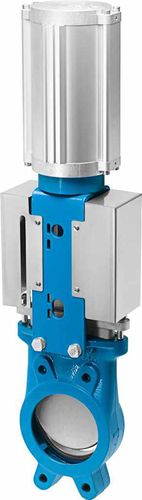

The linear actuators Copac are ideallysuited for use in water, wastewater,service water, process water and bulkmaterial technology as well as the siloand paper industry.A clean solution for shut-off,inspection, safety andcontrol slide valves. The linear actuatorCopac acts directly on the slide gateand ensures that various positions canbe approached accurately.
• Fast or slow valve actuation
• Position sensing
• Internal air channels eliminateprotruding tubing and attachments,and thus also undesirableaccumulation of contaminants
• Suitable for manual on-site use, aswell as automatic operation
• Opening and closing actuated viaflange-mounted solenoid valve withport pattern to Namur, orvia valveterminals with a choice of 30 different fieldbus protocols
• Sturdy and reliable, even inaggressive environments
• High corrosion resistance
• Mounting hole pattern to
• DIN 3358/ISO 5210 for direct attachment
• Port pattern to Namur VDI/VDE 3845 for mounting solenoid valves
توضیحات:
Movement
linear
Type
pneumatic
Technology
piston
Configuration
double-acting
Material
stainless steel
Norms
ISO, VDI/VDE 3845, DIN 3358
Protection class
explosion-proof
Applications
industrial, for sliding gates
Other characteristics
with integrated position sensor, NAMUR, explosion-proof, corrosion-resistant, with integrated solenoid valve, ATEX
Stroke
Min.: 40 mm(1.575 in)Max.: 600 mm(23.622 in)
Pressure
Min.: 2 bar(29.01 psi)Max.: 8 bar(116.03 psi)
Rod diameter
Min.: 80 mm(3 in)Max.: 320 mm(13 in)
Force
Min.: 2,800 NMax.: 48,000 N
Ambient temperature
Min.: -20 °C(-4 °F)Max.: 80 °C(176 °F)
