نام محصول:
محرک خطی
نام انگلیسی:
Linear actuator LP series
برند:
ABB Measurement & Analytics
مشخصات:
Type LP linear pneumatic actuators regulate dampers, inlet vanes, louvers, lever operated valves, turbine governors, fluid drives and other final control elements. The input signals provide modulating control to position the final control element in a linear motion or rotary motion via lever linkage.

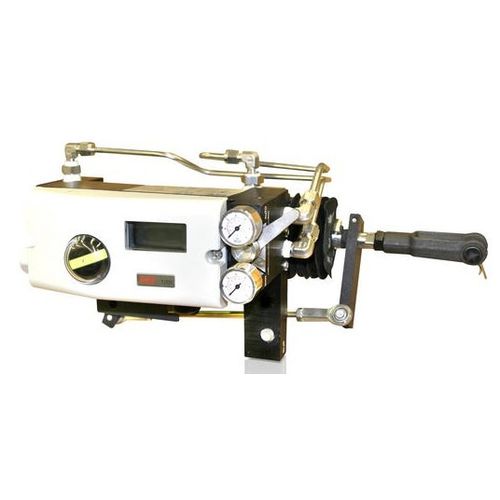

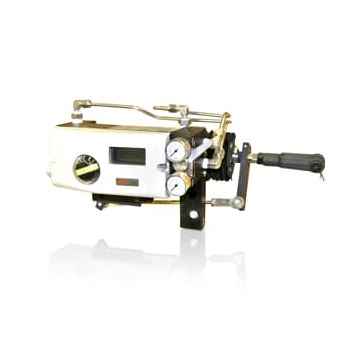

“Simple Cylinder” Type LP Linear pneumatic actuators are supplied with either type AV conventional or type TZIDC digital positioners mounted on the cylinder. Cylinders are supplied with a threaded clevis on the rod end. Base mounting pivots can be ordered as an accessory. A protective boot is optional.
High resolution, sensitivity, and fast response with proven AV and TZIDC Positioners
Cylinders available with Buna-N or Viton seals
Temperature range up to 121⁰C (250⁰F) with AV15, 85⁰C (185⁰F) with TZIDC
Easy adaptability to air dampers and louvers via clevis and pivot pin mounting
Drop in replacement for many “older” cylinder actuators
Available with built-in 4 to 20mA. position feedback
Digital features/benefits available with TZIDC positioner, including HART
The TZIDC-200 Positioner option is explosion-proof
توضیحات:
Movement
linear
Type
pneumatic
Technology
piston
Applications
turbine
Other characteristics
explosion-proof
Stroke
254 mm(10 in)
Pressure
Min.: 40 psiMax.: 90 psi
Force
Min.: 0.75 kNMax.: 27.42 kN
Torque
Min.: 48 Nm(35.403 ft.lb)Max.: 5,569 Nm(4,107.484 ft.lb)
Ambient temperature
85 °C, 121 °C(185 °F, 250 °F)
