نام محصول:
مجموعه ژنراتور دیزل
نام انگلیسی:
Diesel generator set SGen-100 A series
برند:
Siemens Power Genereration
مشخصات:
Excellent performance and outstanding efficiency

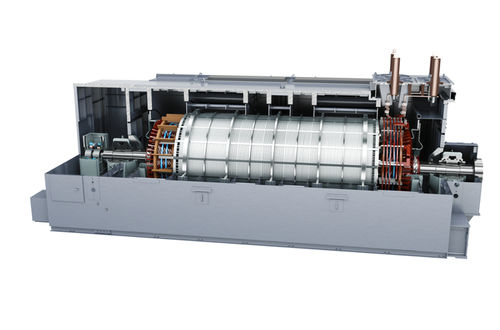

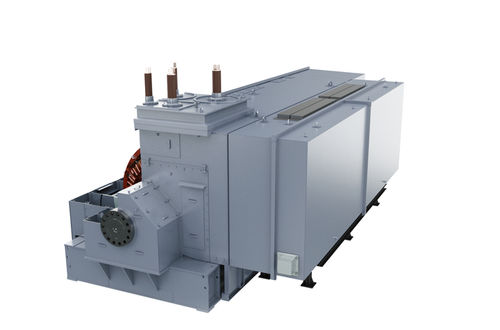

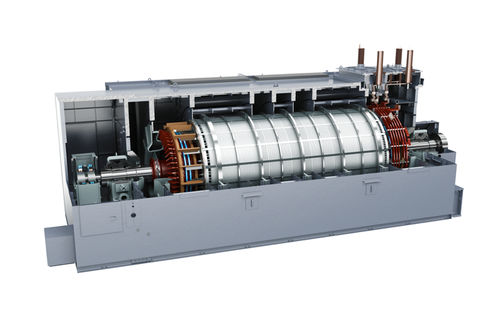

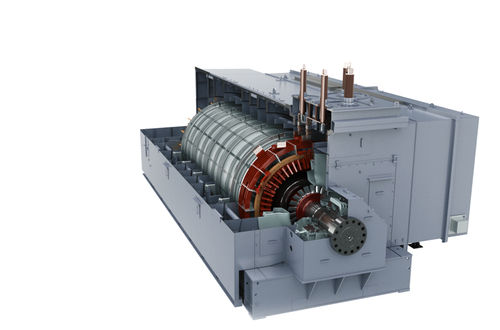

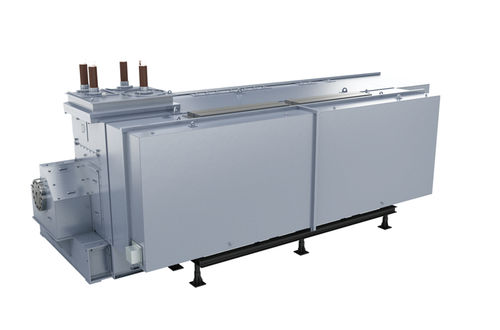

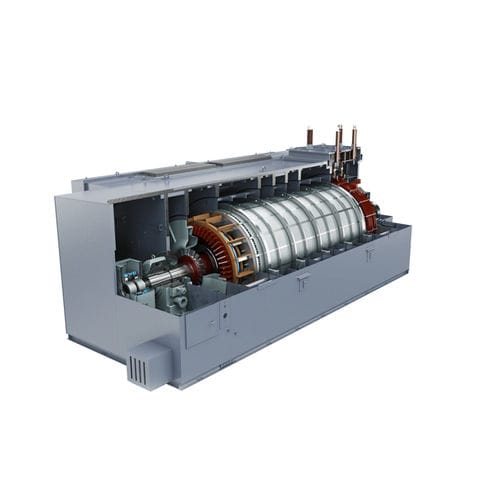

Our air-cooled generator series offers you a competitive advantage by providing ratings of up to 370 MVA with operationally proven technology. The SGen-100A-2P series with 25–180 MVA is optimized for industrial applications and the SGen-1000A series with 180–370 MVA for large power applications. We continuously improve our generators and focus on increased reliability, improved serviceability, high efficiency, and optimum plant integration. Our generator designs benefit from more than 150 years of engineering experience going back to the invention of the electrical generator by Werner von Siemens in 1866.
Increased performance
The entire SGen-100A-2P/1000A series is optimized for world-class efficiency of up to 98.9% and stability during load changes and flexible operation. They are designed for 10.000 start/stop cycles during their operational life, making them a cost-effective alternative to hydrogen- or water-cooled generators for industrial applications up to 370 MVA.
Modular design for a perfect fit
Our experts have designed a product line that meets all major market and application requirements. By applying our modular design philosophy and using pre-designed options, we can customize your generator the way you need it with minimum lead time.
Unique MICALASTIC® insulation system
The proven Siemens MICALASTIC® insulation system with Global Vacuum Pressure Impregnation (GVPI) technology ensures maximum electrical endurance and outstanding availability.
-Insensitive to thermal cycling
-No maintenance required
-Very low mechanical stress during operation
-Non-flammable and self-extinguishing;
توضیحات:
Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz, 60 Hz
Fuel System
mechanical fuel injection
Cooling system
air-cooled
Applications
industrial
Power in kVA
Max.: 370,000 kVA(503,059.83 hp)Min.: 25,000 kVA(33,990.53 hp)
Voltage
Max.: 20 kVMin.: 6.3 kV
