نام محصول:

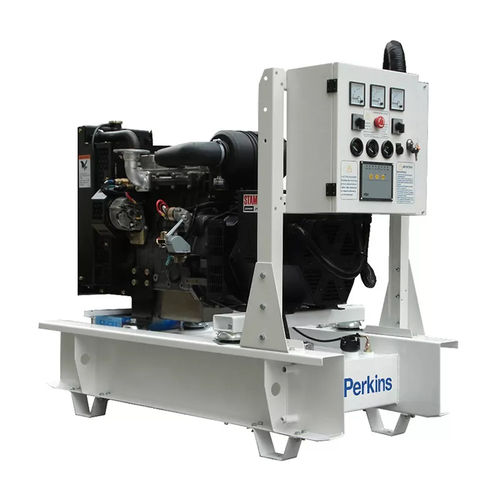

مجموعه ژنراتور دیزل
نام انگلیسی:
Diesel generator set PLD series
برند:
Shandong Pulita New Energy Technology Co., Ltd.
مشخصات:
Genset –
Genset Model – PLD-20GF – PLD-22GF
Rated Current (A) – 36 – 40
Manufacturer – Pulita Energy
Diesel Engine
Main Engine-Body Make – Perkins – Cummins
Diesel Engine Model – 404D-22TG – 4B3.9-G1
Type – Four Stroke, Water Cooling, Direct injection, 24V DC Starting
Displacement (L) – 2.2 – 3.9
Bore× Stock (mm) – 84*100 – 102*120
Air Intake Way – Turbo-charging – Natural
Fuel consumption(L/Kw·h) – 0.21 – 0.21
Alternator –
Brand/Model – Faraday – Faraday
FD1F-4 – FD1F-4
Excitation Method – Self-excited, Brushless, AVR
Phase/Connection – 3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ)
Protection Level/Insulation Class – IP23/H
Control System – The standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller.
Options – Special requirements for Container, ATS, Synchronizing Parallel panels are available for options.
توضیحات:
Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz, 60 Hz
Fuel System
direct fuel injection
Power in kVA
25 kVA, 27.5 kVA(33.99 hp, 37.39 hp)
Rated capacity
20 kW, 22 kW(27.2 hp, 29.9 hp)
Rotational speed
1,500 rpm, 1,800 rpm(9,425 rad.min-1, 11,310 rad.min-1)
Length
1,850 mm(73 in)
Width
800 mm(31 in)
Height
1,160 mm(46 in)
Weight
780 kg(1,719.61 lb)
