نام محصول:
مجموعه ژنراتور دیزل
نام انگلیسی:

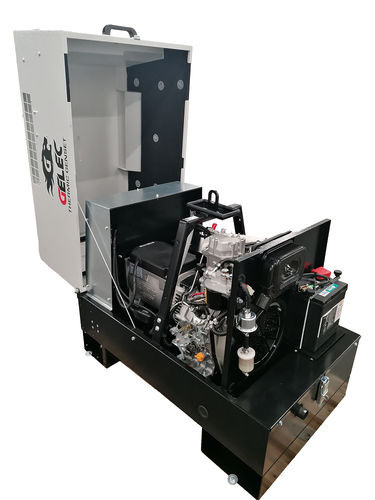

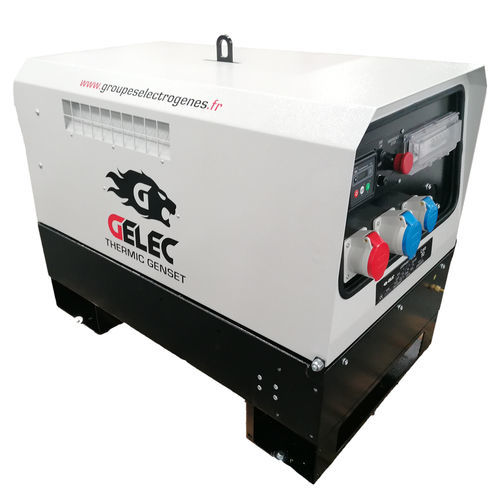

Diesel generator set LEOPARD-7
برند:
GELEC ENERGY
مشخصات:
General technical description:
Power supply: 7 kVA
Frequency: 50 Hz
Voltage: 400V
Operating time: 12.4 h
Tank capacity: 21L
Weight: 206kg
Dimension (L x W x H): 970 x 600 x 750 mm
Technical description of the engine:
Engine Type: Yanmar
Number of Cylinders: 1
Power supply: 10 HP
Motor speed: 3000 rpm
Air cooling
Fuel: Diesel
Starting System: Electric
Control panel equipped with:
– DSE ON/OFF switch
– DSE 3110 module (displays warnings, shutdowns, and engine status information like high temperature, low oil pressure, low fuel level, volts and frequency, operating hours, battery voltage monitoring)
– Circuit breaker
– Emergency stop
– 1 CEE 32A single-phase 230V socket
– 1 CEE 16A three-phase 400V socket
– 1 CEE 16A single-phase 230V socket
Soundproof hood
Exhaust silencers
توضیحات:
Motor type
diesel
Phase
three-phase
Frequency
50 Hz
Cooling system
air-cooled
Applications
industrial, emergency, for construction site, for telecom applications, for hospitals, for railway applications
Options and accessories
soundproofed
Emissions level
Stage V
Power in kVA
7 kVA(9.52 hp)
Voltage
230 V
Rotational speed
3,000 rpm(18,850 rad.min-1)
Length
970 mm(38 in)
Width
600 mm(24 in)
Fuel tank capacity
21 l(5.5 gal)
Height
750 mm(30 in)
Weight
206 kg(454.15 lb)
