نام محصول:
مجموعه ژنراتور دیزل
نام انگلیسی:
Diesel generator set CUMMINS
برند:
Fujian Mindong Electric Co., Ltd.
مشخصات:

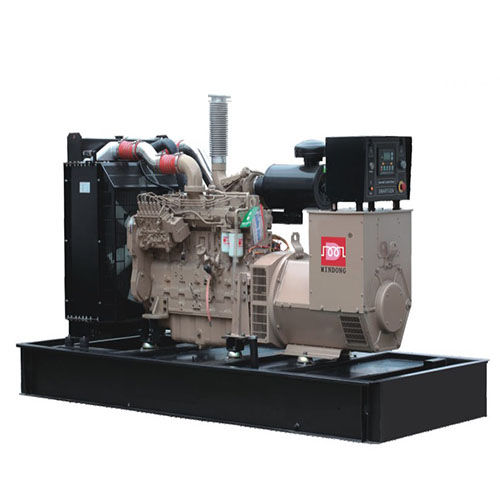

Diesel generator set technical data
1. Generator Set
– Integrated structure, base frame with high-strength steel, Genset can be connected with full suspension suspension absorber design,good damping effect and small shake.
– Diesel: choice of DCEC Cummins or Chong Fa Cummins diesel, 24V DC electric starting, with closed tank water cysling and fan cooling.
– Generator: choice of MINDONG brand TFW3 generator or STAMFORD generator, AVR brushless automatic voltage regulator, class H insulation, protection class according to IP21/22 standard.
– Control panel using the big screen liquid crystal display (LCO) for generator sets control module, have automatic start, data acquisition and display, fault alarm and protection functions, configuration of electric monitoring instrument and diesel operation instrument,
– Genset with MCCB circuit breakers, with short circuit, overload protection function.
– Genset output power to meet the following environmental conditions: Altitude:≤lOOOm Ambient temperature :≤40°C。
2. Genset with 24V high-performance lead-acid batteries and charging generator, can be six consecutive start; and equipped with electricity float charger to ensure adequate battery power.
3. Genset equipped with the base daily tank, to meet the unit more than 6 hours of continuous full load.
4. Genset attach muffler, built-in shock absorbers, corrugated absorber and simple installation materials.
5. Genset emission standards to meet Euro I emission standards
توضیحات:
Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
air-cooled
Options and accessories
open type
Power in kVA
Min.: 25 kVA(33.99 hp)Max.: 1,100 kVA(1,495.58 hp)
Rated capacity
Min.: 20 kW(27.2 hp)Max.: 880 kW(1,196.5 hp)
Rotational speed
1,500 rpm(9,425 rad.min-1)
Weight
Min.: 830 kg(1,829.84 lb)Max.: 8,100 kg(17,857.44 lb)
