نام محصول:
مجموعه ژنراتور دیزل
نام انگلیسی:

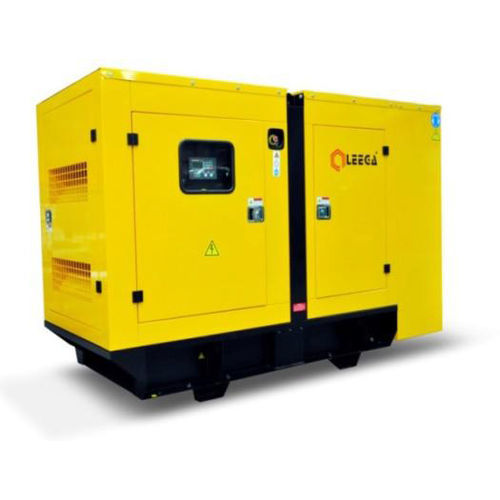

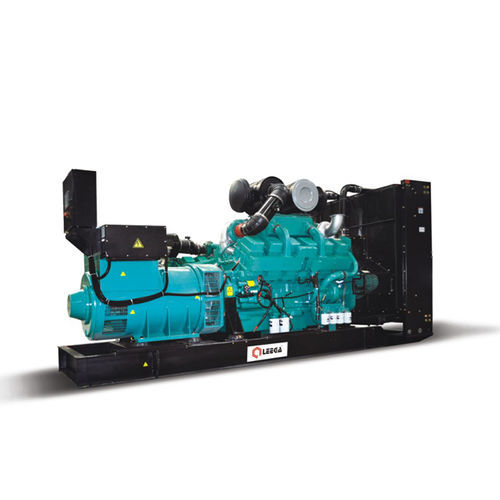

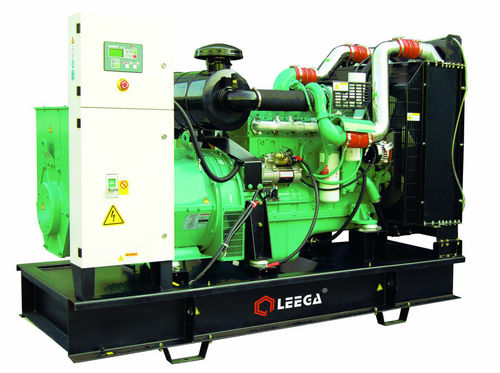

Diesel generator set
برند:
FUJIAN EVERSTRONG LEGA POWER EQUIPMENTS CO., LTD
مشخصات:
(1) Prime Power: Ratings are as per DIN 6271,BS55114 and ISO-3046 with 10% overload capacity.
(2) Standby Power: Power available at variable load for up to a max. of 500 hours during one year of which 300 hours may be for continuous use.
(3) Operation at Altitude ≤1000m, Ambient temperature ≤ 40℃).If altitude higher than 1000m, each 300m will cause additional de-rating 4%
Poles No. 4
Connection type (standard) Series Star
Insulation Class” H” Enclosure (according IEC-34-5) IP23
Exciter system Self-excited, brushless
Voltage regulator A.V.R. (Electronic)
Bracket type Single bearing
Coupling system Flexible disc
Coating type Standard (Vacuum impregnation)
توضیحات:
Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz, 60 Hz
Cooling system
air-cooled
Options and accessories
soundproofed, open type
Power in kVA
Min.: 25 kVA(33.99 hp)Max.: 1,450 kVA(1,971.45 hp)
Rated capacity
Min.: 20 kW(27.2 hp)Max.: 1,160 kW(1,577.2 hp)
Voltage
230 V, 254 V, 400 V, 440 V
Rotational speed
1,500 rpm, 1,800 rpm(9,425 rad.min-1, 11,310 rad.min-1)
Width
Min.: 1,080 mm(43 in)Max.: 1,790 mm(70 in)
Height
Min.: 1,255 mm(49 in)Max.: 2 mm
Weight
Min.: 740 kg(1,631.42 lb)Max.: 7,350 kg(16,203.98 lb)
