نام محصول:
مجموعه ژنراتور دیزل
نام انگلیسی:

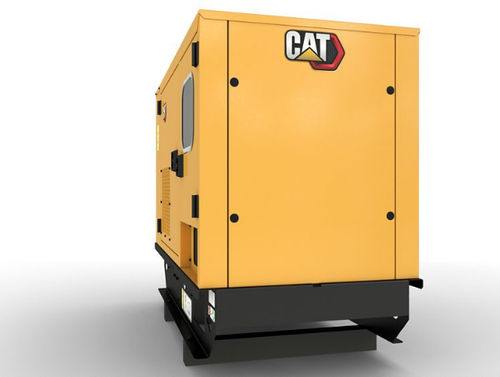

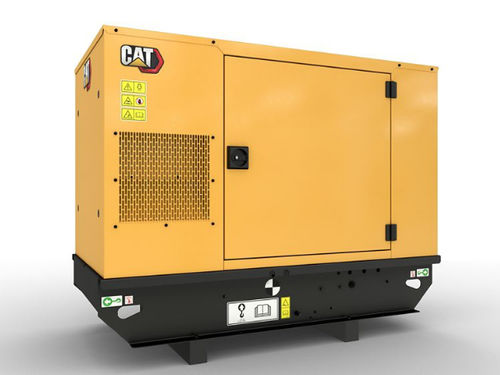

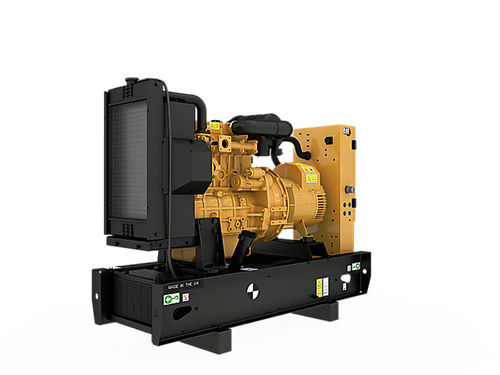

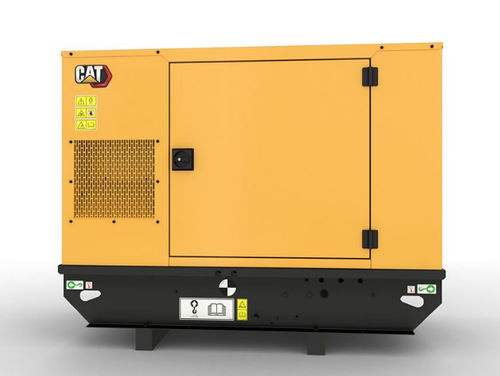

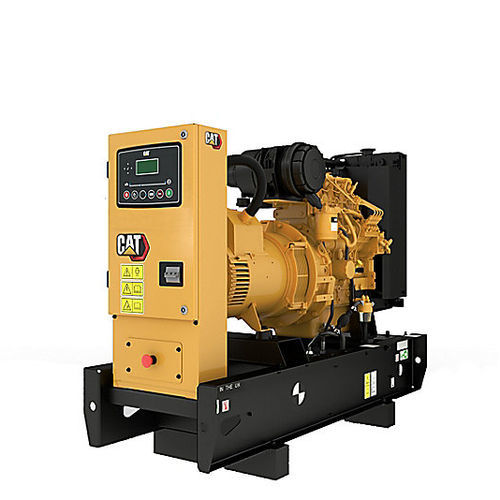

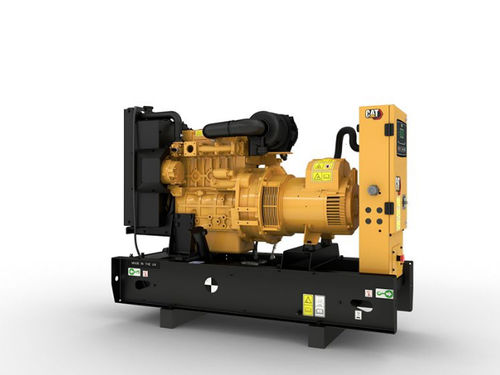

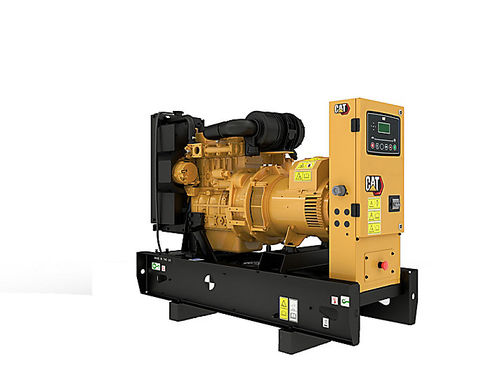

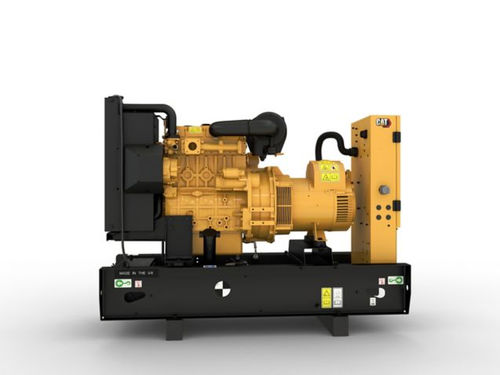

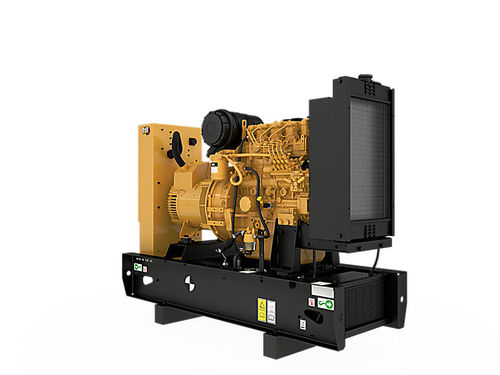

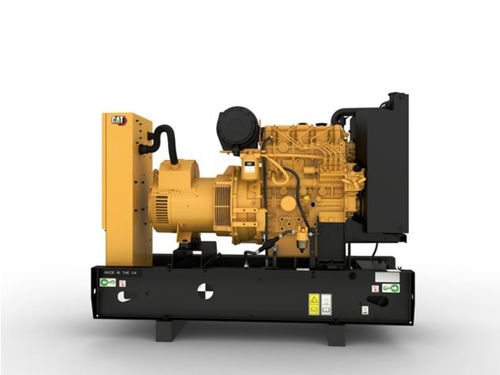

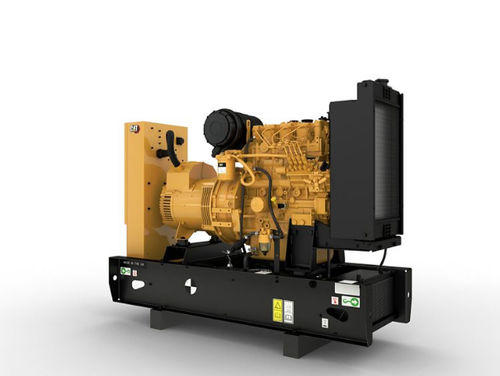

Diesel generator set C1.1
برند:
CAT
مشخصات:
Producing reliable power from 6.8 to 9.0 kVA at 50 Hz, our C1.1 diesel generator sets designed to ISO 8528-5 transient response requirements. All C1.1 generator sets are R96/EUIIIa equivalent emissions compliant.
FEATURES AT A GLANCE
CAT GENERATOR SET PACKAGE
.Cat generator set packages have been fully prototype tested
.Accepts 100% block load in one step and meetsNFPA 110 loading requirements
.Conform to ISO 8528-5 steady state and transient response requirements
CAT DIESEL ENGINE
.Reliable, rugged, durable design
.Field-proven in thousands of applications worldwide
.Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
M-FRAME ALTERNATOR
.Superior motor starting capability minimizes need for oversizing alternator
.Designed to match performance and output characteristics of Cat diesel engines
.Robust Class H insulation

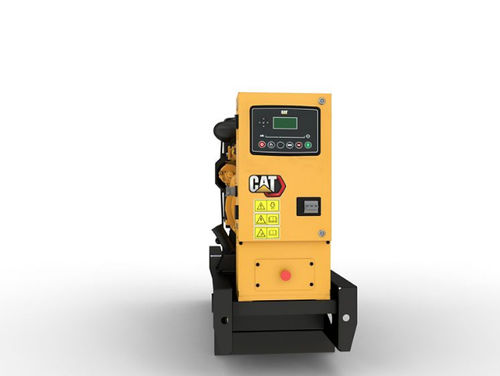

GCCP 1.3 CONTROL PANEL
.User-friendly interface and navigation
.Scalable system to meet a wide range of installation requirement
.Expansion modules and site-specific programming for specific customer requirements
.Image may not be a representative of actual product

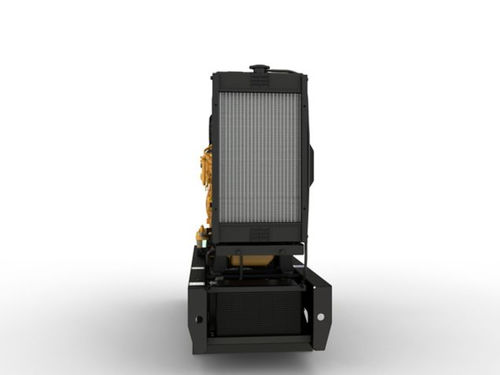

COOLING SYSTEM
.Designed to operate in standard ambient temperatures up to 55°C (131°F)
.Contact your Cat Dealer for specific ambient and altitude capabilities
CERTIFICATIONS
Cat Dealers provide extensive post sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Cat® SOSSM program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products.
توضیحات:
Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Fuel System
mechanical fuel injection
Options and accessories

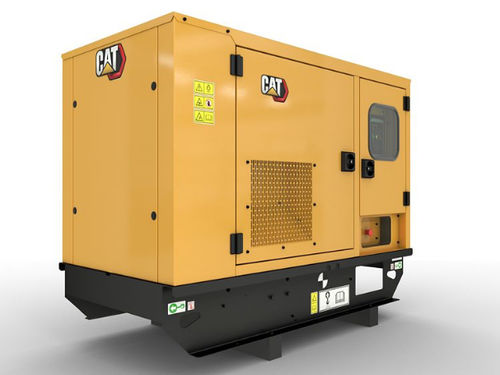

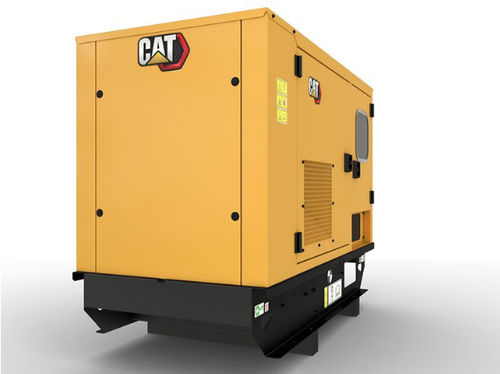

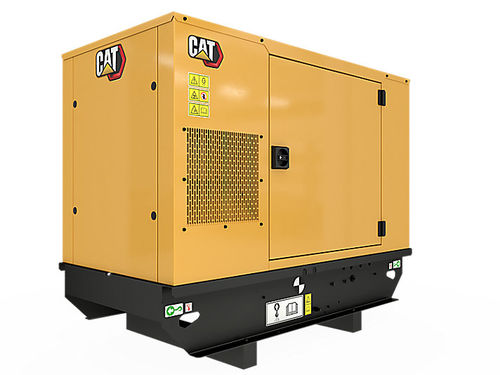

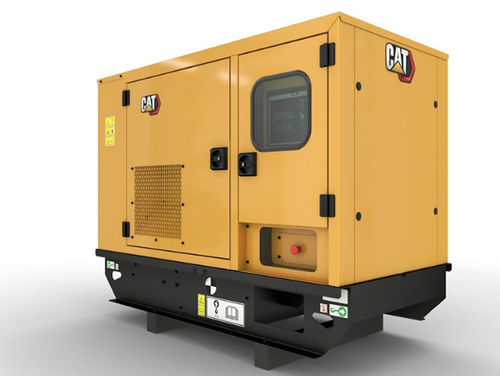

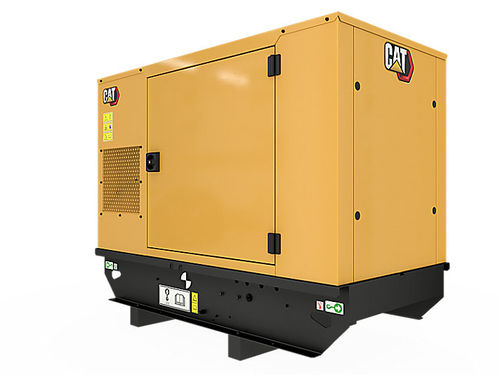

with cover, EU IIIA emissions-compliant
Power in kVA
Min.: 6.8 kVA(9.25 hp)Max.: 9.5 kVA(12.92 hp)
Voltage
Min.: 110 VMax.: 415 V
Rotational speed
1,500 rpm(9,425 rad.min-1)
Length
1,400 mm(55 in)
Width
620 mm(24 in)
Height
996 mm(39 in)
