نام محصول:
مجموعه ژنراتور دیزل
نام انگلیسی:

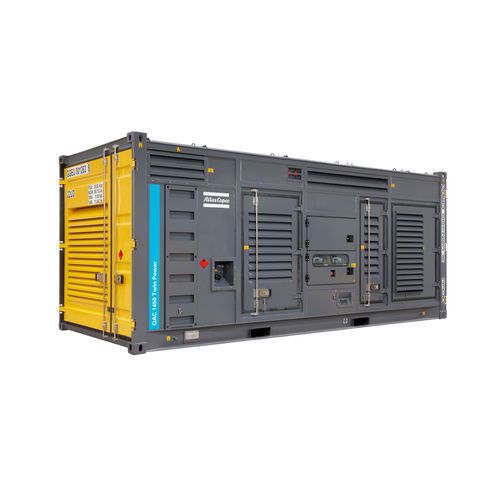

Diesel generator set QAC TwinPower™
برند:
Atlas Copco Construction Tools
مشخصات:
Easy and flexible installation in prime or standby applications

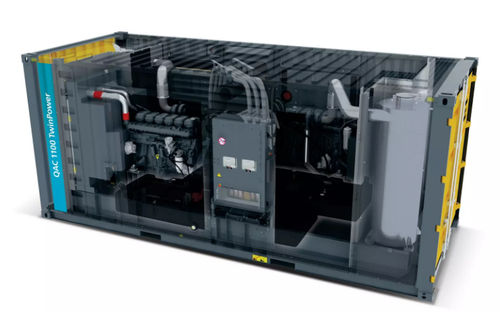

2 generators 1 Box
The TwinPower is a 20-foot containerized generator with two generators inside, making it perfect for applications that have variable power needs
Centralized control & monitoring
TwinPower has two controllers, including touchscreen functionality, so you can easily parallel with other generators. You have the choice of island mode or PMS (Power Management System).
24/7 Power Availability
The service requirement is less than 2 hours of maintenance for every 500 hours of operation. Due to the TwinPower concept, it is possible to still benefit from 50% of the unit’s total capacity during maintenance operations.
Up to 40% Less fuel and CO2 emissions
Fully loaded, the QAC TwinPower offers two engines in a single container, solving load issues and reducing fuel consumption up to 40% on variable load applications
Ready for stage V
We can help you with a smooth transition towards the phased adoption of EU Stage V engine emission standards in 2019/21.
arge power generator
Double the flexibility, twice the power
We understand your need for power, but do your power needs ever change? The QAC TwinPower is a 20-foot containerized generator with 2 generators inside, making it perfect for applications that have variable power needs, whether that’s due to the time of day or the current usage requirements.
Fully loaded, the QAC TwinPower offers two engines in a single container, solving load issues and reducing fuel consumption up to 40% on variable load applications. Because you get two generators in one platform,
توضیحات:
Motor type
diesel
Phase
three-phase
Portability
containerized
Frequency
50 Hz, 60 Hz
Fuel System
direct fuel injection
Cooling system
air-cooled
Applications
for construction site
Emissions level
Stage V
Power in kVA
Max.: 1,450 kW(1,971.45 hp)Min.: 0 kW(0 hp)
Rated capacity
Max.: 1,272 kW(1,729.4 hp)Min.: 850 kW(1,155.7 hp)
Voltage
220 V, 380 V, 400 V, 440 V, 480 V
Rotational speed
1,500 rpm, 1,800 rpm(9,425 rad.min-1, 11,310 rad.min-1)
Length
6 m(19’08” )
Width
3 m(9’10” )
Height
3 m(9’10” )
Weight
Max.: 19,700 kg(43,431.07 lb)Min.: 10,400 kg(22,928.08 lb)
