نام محصول:
مجموعه ژنراتور ترکیبی
نام انگلیسی:

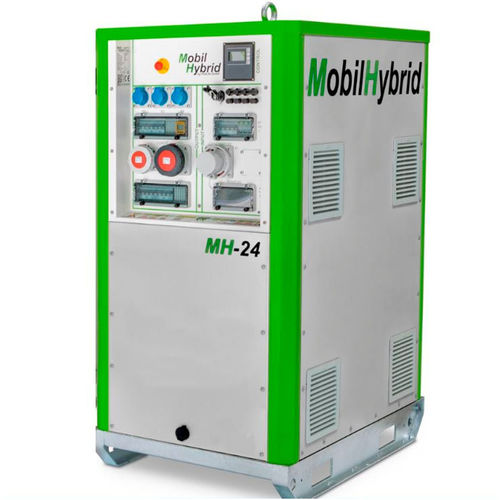

Hybrid generator set MH24
برند:
MobilHybrid by PV4Life GmbH
مشخصات:
The M obile H YBRID
MH-24
Every MobilHybrid has a protective function against overload, overtemperature, short circuit and deep discharge
Protection class IP54
Combined with our M obile PV installations
Weight:1480 kg
size:1200 × 800 × 1690 cm
Size:C.
Continuous output VA at 25 ° V:24000
Peak power VA 25 ° C 5 sec:60000
Output voltage AC:3 AC 230/400 V.
Input current max. AC:100A 3ph
Max. Output current (with external AC source):63 A option: 125A (125A)
Protective functions:Overload, overtemperature, short circuit, discharged battery
Earth fault protection:125 A 3ph 300 mA FI
Usable battery capacity kWh:24
Input connector – :63A option: CEE 125A 3ph
Output connector A:63A option: CEE 125A 3ph
Output connector B:3 x Schuko 16A IP54
Charging time to full charge:2.5h
Auxiliary contact (remote start diesel gen.)
Harting HAN-7D
Battery monitoring:LCD display: voltages, power, remaining battery capacity, range, charging cycle history
Battery cycles:1200
Protection class:IP54
Operating temperature range:-10 ° C to + 45 ° C
Optional photovoltaic connection:MPPT controller with up to 8kWp connectable module power
توضیحات:
Motor type
hybrid, battery-powered
Phase
three-phase
Portability
containerized
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
air-cooled
Applications
industrial, emergency, for construction site, for marine applications, rental, for telecom applications, for military applications, for railway applications, for mining
Options and accessories
outdoor, solar
Power in kVA
Max.: 60 kVA(81.58 hp)Min.: 24 kVA(32.63 hp)
Rated capacity
24 kW(32.6 hp)
Voltage
400 V
