نام محصول:
مجموعه تولید کننده گاز طبیعی
نام انگلیسی:
Natural gas generator set GR series
برند:
PowerLink
مشخصات:

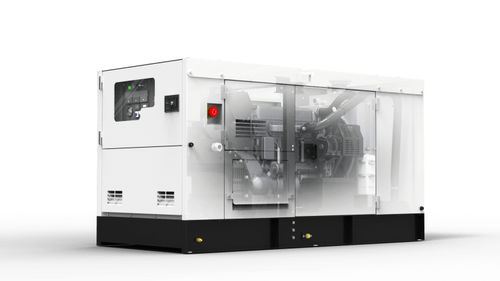

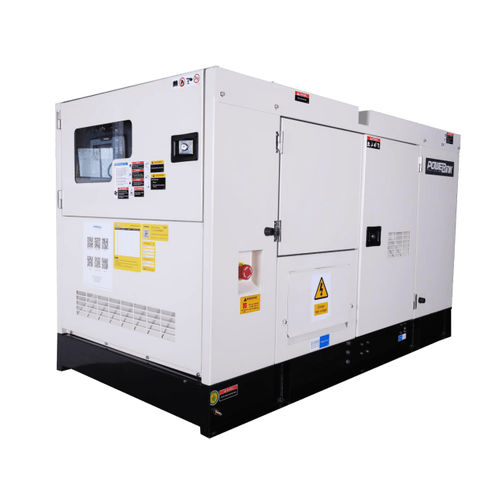

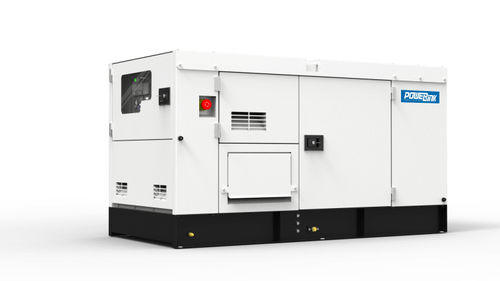

GAS GENERATOR SETS
GR
GR series power generation units are highly cost-effective distributed energy products. Especially designed for the power range 12KW-30KW as micro-CHP units, the power efficiency is at over 34%. This is a high-performance power system, featuring stable operation and is highly durable. The investment cost is low with a short payback period. The modular system is easy to install and can be put into use after a short installation process. Most popular for LPG and natural gas as fuel.
توضیحات:
Motor type
natural gas, LPG
Phase
three-phase, single-phase
Portability
stationary, containerized
Frequency
50 Hz
Cooling system
water-cooled
Options and accessories
soundproofed
Power in kVA
15 kVA, 20 kVA, 30 kVA, 37.5 kVA(20.39 hp, 27.19 hp, 40.79 hp, 50.99 hp)
Rated capacity
12 kW, 16 kW, 24 kW, 30 kW(16.3 hp, 21.8 hp, 32.6 hp, 40.8 hp)
Voltage
380 V, 400 V, 415 V
Rotational speed
1,500 rpm(9,425 rad.min-1)
Width
865 mm, 970 mm(34 in, 38 in)
Noise level
50 dB
Height
1,067 mm, 1,076 mm, 1,136 mm(42 in, 42 in, 45 in)
Weight
725 kg, 753 kg, 945.54 kg, 1,024 kg(1,598.35 lb, 1,660.08 lb, 2,084.56 lb, 2,257.53 lb)
