نام محصول:
مجرای محافظت
نام انگلیسی:

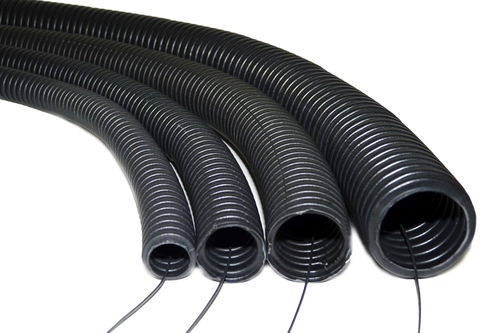

Protection conduit COMBO SPIRAL LIGHT TYPE 320N
برند:
courbi
مشخصات:
GENERAL DESCRIPTION
• Corrugated (spiral), pliable
• Made of polyvinyl chloride – (U-PVC)
• Self extinguishing; flame retardant.
APPLICATIONS
• Indoor residential and industrial installations
• Cable routing through masonry – Flush installations
• Fits with: CΟΜΒΟ Rigid, DOMO Rigid, FORTE Rigid, Junction – Switch – Plasterboard Boxes, Conduits Connection

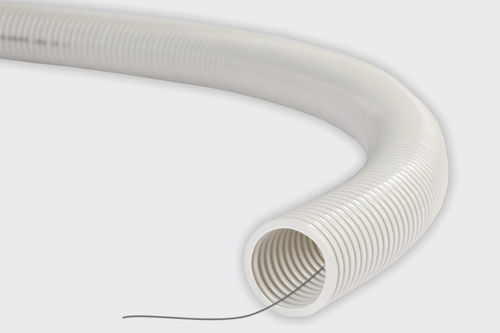

Available with special galvanized wire internally for quick and easy installation of cables upon order with an extra charge.
APPLICATION STANDARDS: ΕΝ 61386-1/2004, EN 61386-22/2004
PROPERTIES
Resistance to compression – (compression force) at 22 ±2 °C > 320 Ν / 5cm
Resistance to Impact – (Weight mass / Fall Height) at -15 °C m:1kg / h:100mm
Minimum temperature limit – 5° C
Maximum temperature limit +60° C
Dielectric strength 2 kv / 15 min
Insulation resistance > 100 ΜΩ
توضیحات:
Type
protection
Structure
corrugated, spiral
Applications
for electrical cables
Material
PVC
Protection level
self-extinguishing, flame-retardant, impact-resistant
Other characteristics
flexible
Diameter
16 mm, 20 mm, 25 mm, 32 mm(0.6 in, 0.8 in, 1 in, 1.3 in)
Temperature
Min.: -5 °C(23 °F)Max.: 60 °C(140 °F)
