نام محصول:
مجرای راهرو
نام انگلیسی:

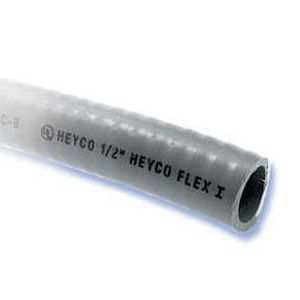

Corrugated conduit Heyco-Flex™ I
برند:
Heyco
مشخصات:
Flexible, Nonmetallic Liquid Tight Electrical Conduit
FEATURES
– Smooth inside for easier wire pulling; no hazardous sharp edges or burrs; will not damage conductors.
– Lightweight and lower installed cost.
– Integral rigid and flexible PVC construction.
– Use with nylon Heyco-Flex Connectors; Straight or Snap-in, or Sweep.
– Also use with NPT Quick Twist Fittings. Straight or Sweep.
– May also be used with Heyco’s Metallic Fittings for Liquid Tight Conduit: Straight-Thru or 90° Sweep.
– Resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments.
– Resists abuse, pull, and crushing.
– Approved for direct burial.
– Sunlight resistant.
– Suitable for indoor/outdoor use: HVAC Equipment, Machine Tools, Marine Equipment, Motors and Controls, Printing Equipment, Pumps, Refrigeration Equipment.
– Temperature ratings:
– 80°C (176°F) DRY
– 70°C (158°F) OIL Resistance
– 60°C (140°F) WET locations
– Passes submersion test of 70 psi.
– Voltage rating: 600V
– Mounting brackets are available.
– Order Part No. 8340, HF-28 Cutting Tool, for cutting Heyco-Flex conduit and tubing cleanly and evenly.
QuickSpecs
Material PVC
Certifications – Listed under Underwriters’ Laboratories File E121096
Certified by Canadian Standard Association File 233010
Flammability Rating VW1
توضیحات:
Type
insulating
Structure
corrugated
Applications
for cables, for electrical cables
Material
PVC, nylon
Protection level
liquid-tight
Other characteristics
flexible, rigid
Diameter
Max.: 60 mm(2.4 in)Min.: 12.5 mm(0.5 in)
Temperature
Max.: 80 °C(176 °F)Min.: -18 °C(-0 °F)
