نام محصول:
مبدل SMD DC/DC
نام انگلیسی:

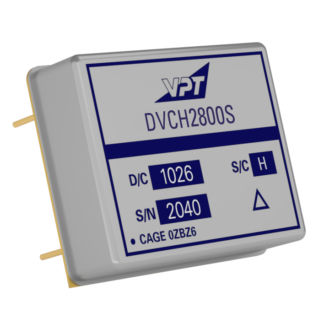

SMD DC/DC converter DVCH Series
برند:
VPT Inc
مشخصات:
The DVCH Series of DC-DC converters delivers just 1.5 watts in the most efficient, small-size package available today for use in critical-reliability applications. The extra-wide input voltage range, very low output noise, and high reliability ensures the DVCH is the perfect low power choice for your next space or avionics program.
Features:
˃ Single outputs of 3.3V, 5V, 5.2V, 12V, and 15V
˃ Extra-wide 12V to 50V input range with 80V transient per MIL-STD-704
˃ Up to 1.5W output power
˃ Full operation over -55 °C to +125 °C military temperature range
˃ Fault tolerant design with patented technology – no optoisolators
˃ Very low input/output noise
˃ High reliability magnetic feedback circuit
˃ Tiny size – 0.975″x 0.8″ x .27″ and light weight (11g)
˃ Host of circuit protection features
˃ Fixed switching frequency
Compliances and Certifications:
˃ Available qualified to MIL-PRF-38534 Class H and Class K, DLA SMD #5962-09242
˃ MIL-PRF-38534 Class H and Class K certified manufacturing facility
˃ MIL-STD-704A input voltage requirements
˃ DO-160
˃ ISO-9001
˃ MIL-STD-883 military and space environmental screening available
˃ MIL-STD-461 C-F when used with a VPT DVMSA EMI filter
توضیحات:
Configuration
SMD
Electrical characteristics
low-power
Applications
military, for aircraft
Other characteristics
single-output, wide input range, switching, EMI, low-noise
Input voltage
Min.: 12 VMax.: 50 V
Output voltage
3.3 V, 5 V, 5.2 V, 12 V, 15 V
Power
1.5 W
