نام محصول:
مبدل DIN Rail DC/DC
نام انگلیسی:

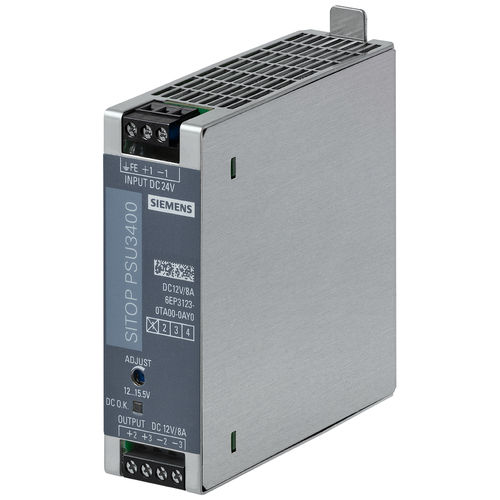

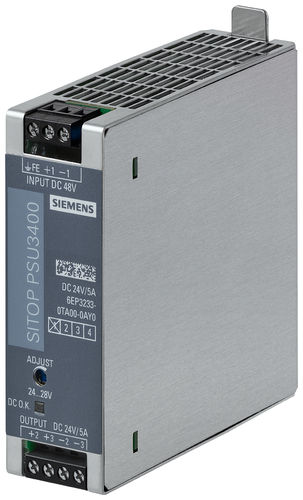

DIN rail DC/DC converter SITOP PSU3400
برند:
Siemens Power Supplies
مشخصات:
A SITOP DC/DC converter can be used as a “refresher” – in other words, this module guarantees a reliable power supply to a remote load when bridging long distances. At the same time, a SITOP DC/DC converter serves as a stabilizer: If the power supply is unstable, it stabilizes it in the downstream feeder. This type of module is ideal for use with battery-powered devices, where the battery’s output voltage can vary depending on its charge status. A SITOP DC/DC converter ensures a stable 24 V DC supply to connected loads, such as a control unit (CPU).
SITOP PSU3400 DC/DC converters ensure a stable 12 V or 24 V power supply despite a fluctuating input voltage.
Operation with 24 V DC or 48 V DC batteries, thanks to a wide input voltage range
New device PSU3400 uni with universal input for operation on 24 – 240 V DC or 100 – 240 V AC rated input voltage
Avoidance of incorrect installation, thanks to reverse polarity protection at the input
Small mounting surface and space savings, thanks to a slim design and the possibility of different mounting positions
Adjustable output voltage for compensating voltage drops
Signaling contact for easy integration into the plant monitoring system
Minimal heat dissipation inside the control cabinet, thanks to the power supply’s high degree of efficiency
Low energy consumption, thanks to the high degree of efficiency
Reduced energy losses even during no-load operation, thanks to very low no-load losses
Extensive certifications for all standard applications worldwide
Industry-specific use in shipbuilding (maritime applications), thanks to DNVGL and ABS Marine Approval
توضیحات:
Configuration
DIN rail
Applications
industrial
Other characteristics
wide input range, switching, adjustable
Input voltage
Max.: 264 VMin.: 14 V
Output voltage
12 V, 24 V
