نام محصول:
مبدل DC/DC صنعتی
نام انگلیسی:

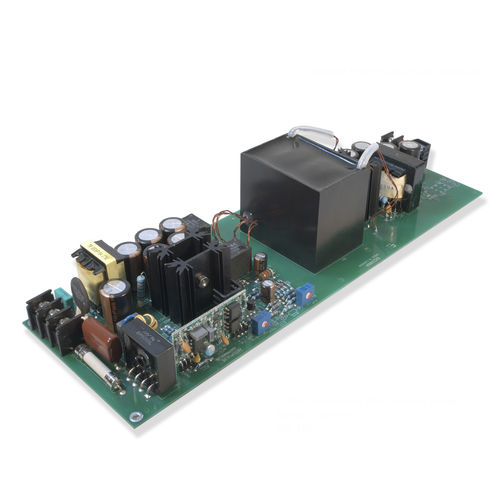

Industrial DC/DC converter DIO-120 series
برند:
ABSOPULSE Electronics Ltd.
مشخصات:
ABSOPULSE Electronics′ DIO 120 Series provides a 120W corona free, 20kV Isolated DC-DC converter. They are typically used for high power gate drivers and similar applications in oil and gas, mining, railway and industrial environments.
Key Specifications
20kVrms isolation input/output and output/chassis
Corona free at 10kVrms
Inputs: 24Vdc (22-28V range), 48Vdc (44-56V range) or custom
Output: 12V, 15V, 24Vdc (5A current limit) or custom
Feedback system on primary side uses no optical components
-20°C to 50°C operating temperature range, for full specification
82% min. efficiency at full load
Designed to meet to meet EN60950-1 and related UL & CSA standards
Convection cooled
Full electronic protection
توضیحات:
Configuration
open-frame
Electrical characteristics
high-voltage
Applications
industrial
Other characteristics
single-output, rugged, high MTBF, convection-cooled
Input voltage
Min.: 22 V24 V, 48 VMax.: 56 V
Output voltage
12 V, 15 V, 24 V
Power
120 W
