نام محصول:
مبدل AC/DC جمع و جور
نام انگلیسی:

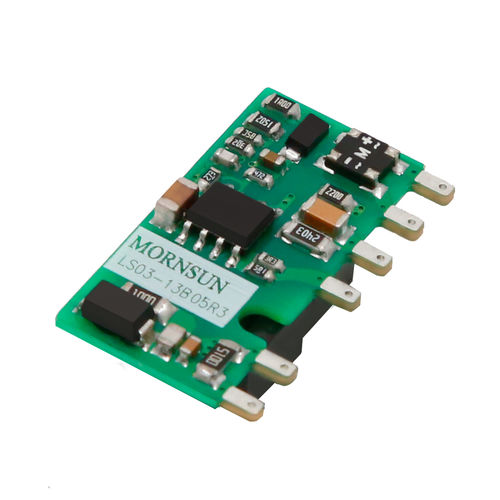

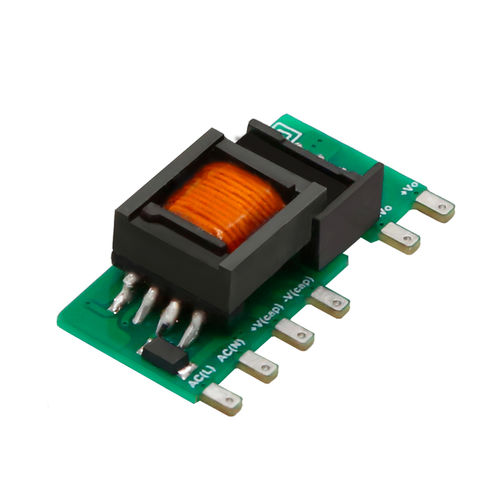

Compact AC/DC converter LS03-13B03R3
برند:
MORNSUN Guangzhou Science & Technology Co.,Ltd.
مشخصات:
FEATURES
• Ultra-wlde 85 – 305VAC and 100 – 430VDC Input voltage range
• Accepts AC or DC Input (dual-use of same terminal)
• Operatlng amblent température range -40’C to +85’C
• Multl applbatbn, flexible layout
• Compact slze, hlgh power denslty, green power
• No-bad power consumptbn as bw as 0.1W
• Output short circuit, over-current protection
• Deslgned to meet IEC/EN61558. IEC/EN60335 standards
• Deslgned to meet IEC/EN/UL62368 standards (Approval pendlng)
LSxx-13BxxR3 sériés isone of Mornsun’s highly efficient green power AC-DC Concerter séries. They feature wide input range accepting either AC or DC voltage, high efficiency, low power consumption and Clss II reinforced insulation. All models are parlicularty suitable for industrial control, electric power, instrumentation and Smart home applications which have high requirement for dimension and dont have high requirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet
توضیحات:
Other characteristics
compact, industrial
Power
6.6 W
Voltage
3 V
Primary current
2,000 mA
