نام محصول:
مبدل 1U DC/DC
نام انگلیسی:

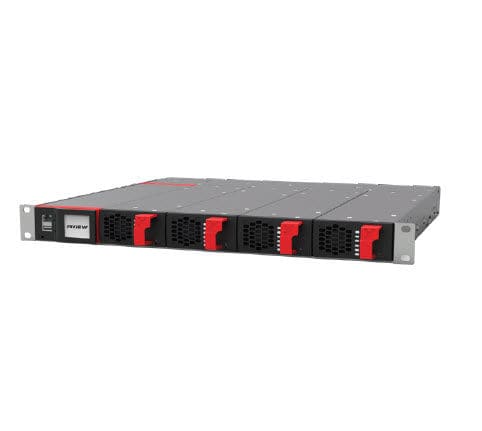

1U DC/DC converter Subrack – Bravo 10 – 48/230
برند:
CE+T Power
مشخصات:
Introduction
This Subrack System is an all-in-one solution including the Bravo 10 – 48/230 power converters, Inview S Slot monitoring and output distribution
in only 1U high. The solution is designed to evolve with your needs, securing loads from 1.25 to 5 kVA with the monitoring included.
Technology
The ECI technology offers both AC and DC inputs to provide a secured AC power while reaching a 96% conversion efficiency (reducing the number of power conversion under normal condition)! The DC energy buffer integrated inside each module automatically filters every disturbances from the grid to supply the loads with a pure power.
Easy maintenance
Our power converters are hot-swappable to ease the maintenance. This plug & play solution does not require any training to replace a module in your system.
For which application?
An ideal solution for securing small critical AC loads, from 1.25 kVA to 5 kVA, using an existing DC infrastructure. Some of the targeted applications are telecom antennas (4G and 5G), access control, traffic lights, security equipment, etc.
CE+T offers solutions securing loads up to 1.1 MW and with different voltages (230 Vac, 120 Vac, 48 Vdc, 110 Vdc, 380 Vdc, etc.). Do not hesitate to contact us for any other configuration.
⚠️ Our solutions are only suitable for B2B, with minimum order quantities for each type of product. Don’t hesitate to contact us for specific configuration.
توضیحات:
Configuration
1U
Electrical characteristics
regulated, power, high power density, with low ripple
Applications
industrial, for railway applications, for telecom applications, for multi-purpose applications, fuel cell
Other characteristics
galvanically-isolated, wide input range, compact, high MTBF, modular, low-EMI, redundant, hot-swap
Input voltage
48 VMax.: 60 VMin.: 40 V
Output voltage
230 VMin.: 230 V
Power
Max.: 4,000 WMin.: 1,000 W
