نام محصول:
مبدل ولتاژ SIL2
نام انگلیسی:

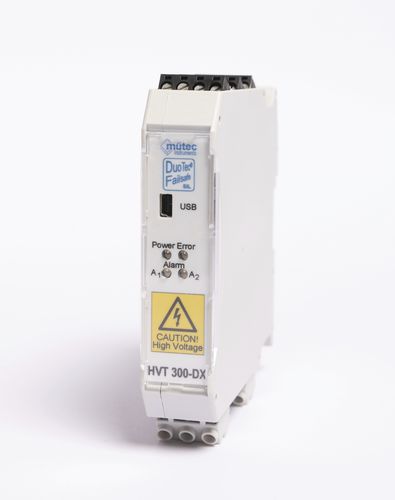

SIL2 voltage transducer HVT 300-DX
برند:
Mütec Instruments GmbH
مشخصات:
The HVT 300-DX is a SIL2 certified voltage transmitter, to be used for voltages up to 1000V.
The HVT 300-DX has 2 freely configurable alarm relays and 2 SIL relays as well as an analog 4-20 mA output. It can be freely configured by software via USB. Numerous monitoring functions, such as cable break monitoring or a memory check, ensure error-free operation.
The HVT 300-DX is the only SIL2 signal converter on the market that can be operated up to 1000V. With the HVT 400-DX there is a variant up to 1500V.
Typically, the voltage transducer is used in applications where safety measures have to be executed safely, e.g. safe switching depending on a certain voltage threshold. This is e.g. the case in automotive test benches where door interlocking or touch protection is required at high powertrain voltages.
FEATURES:
– Redundant voltage input for up to 1000VDC
– Voltage transmitter in DuoTec technology with self-monitoring according to IEC/EN 61508
– Certified according to IEC 61508 SIL2
– FIT = 37
– Measuring range: 0 – max. 1000VDC (1500VDC optional)
– Output: 0/4-20 mA
– 2 individually adjustable limit values (2 relay contact outputs for parameterization of switching thresholds & alarm)
– 2 error alarms
– Fault indication acc. to NAMUR NE 43
– Test voltage 4,3kV AC, working voltage 1000VAC/DC at overvoltage category II, pollution degree 1 IEC 61010-1
– Safe galvanic isolation between power supply, input and output
– RS 485 Modbus via DIN rail contact
– USB 2.0 interface
– Configuration ON-LINE via WINDOWS software
– Power supply 24VDC
– Design: DIN rail, DIN EN 50022
توضیحات:
Electrical characteristics
DC
Other characteristics
DIN rail, programmable, SIL2
Voltage
Min.: 0 VMax.: 1,000 V
