نام محصول:
مبدل ولتاژ DC
نام انگلیسی:
DC voltage transducer DVT-1000
برند:
Manutech Europe
مشخصات:

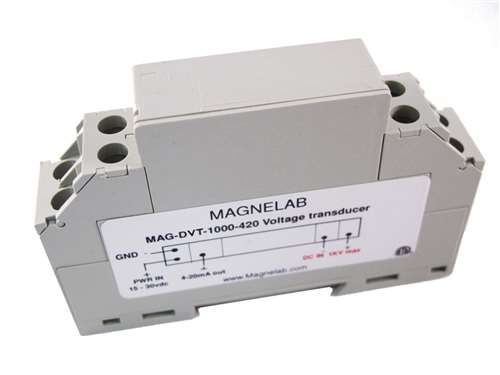

DVT-1000 DC Voltage Sensor
DIN Rail-Mounted Isolated DC Voltage Transducer
The DVT-1000 DC Voltage Transducer is designed to convert a 10-1000 DC Voltage input to either a 4-20mA output or a voltage standard output that is proportional to the input. It is also perfect for solar-string voltage monitoring. The DC Voltage Transducer provides effective and safe isolation between the input and output.
DVT-1000 DC Voltage Sensor Features:
•Primary voltage DVT-100: 1000-10,000 Vdc
•Output 4-20mA, 0-1Vdc, 0-5Vdc
•Accuracy: 1% over range
•Linearity: 0.5% over range
•Response time: 10.0 mSec
•Working Range: 0-120%
•Overload: 150% continuous
•Temperature: -30 degrees C to 70 degrees C operating
•Humidity: 90% operating
•Isolution: 4.5KV, 1 Minute
•Supply voltage: 15-48 Vdc
Additional information
Weight 0.0589670081 kg
Amp Rating420, V01, V05
Product TypeVoltage Transducer
Input DC
Output 4-20 mA
توضیحات:
Electrical characteristics
DC
Other characteristics
DIN rail
Voltage
Max.: 1,000 VMin.: 10 V
