نام محصول:
مبدل فلزی DC/DC
نام انگلیسی:

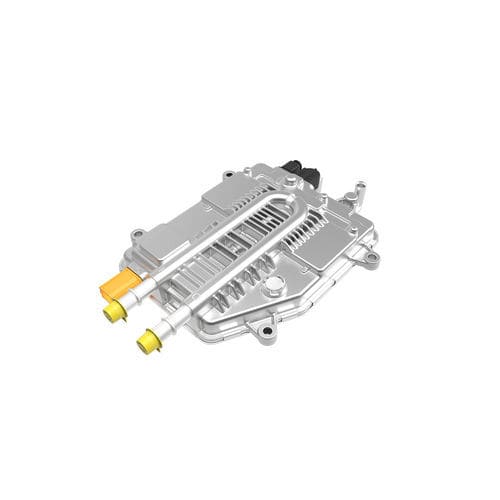

Metal package DC/DC converter
برند:
Vitesco Technologies
مشخصات:
The high voltage DC/DC converter ensures the energy flow between the high voltage and the 12 V vehicle electrical system in a hybrid or electric vehicle. As many of the electrical components in a vehicle require a 12V connection, Vitesco Technologies DC/DC converter transforms the power to high voltage and vice versa. It enables a scalable power variation and a high modularity in packaging.
FACTS & BENEFITS
Increased output power (peak/cont.) / High power density
Customizable for input voltages of 400-800 V and output voltages of 12-48 V
EMC legal requirements / AUTOSAR compliant software architecture
Stand alone or Integrated
TECHNICAL INFORMATION
DC/DC power scalable up to 3.5 kW
Output current two phase: 240 A at 14.5 V cont.
Output peak current two phase: 280 A for 10 sec. at 14.5 V cont.
Nominal operating voltage range HV: 220 V – 450 V
Nominal operating voltage range LV: 8 V -16 V
Safety level: ASIL B(D)
Size (LxWxH): 250x200x50 mm
Weight: 2.6 kg
توضیحات:
Configuration
metal package
Electrical characteristics
high-voltage
Applications
vehicle
Other characteristics
12 V
Output voltage
Max.: 450 VMin.: 220 V
Power
3,500 W
