نام محصول:
مبدل باز DC/DC باز
نام انگلیسی:
Open-frame DC/DC converter DC300WS
برند:
Bicker Elektronik GmbH
مشخصات:
300W DC/DC converter with adjustable output voltage +12V /+19V /+24V
6-36VDC wide range input / contact cooling

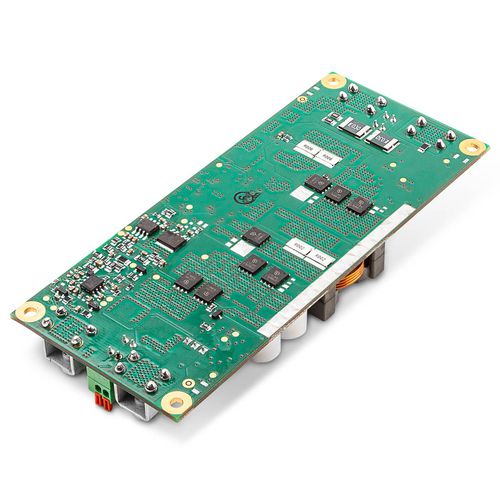

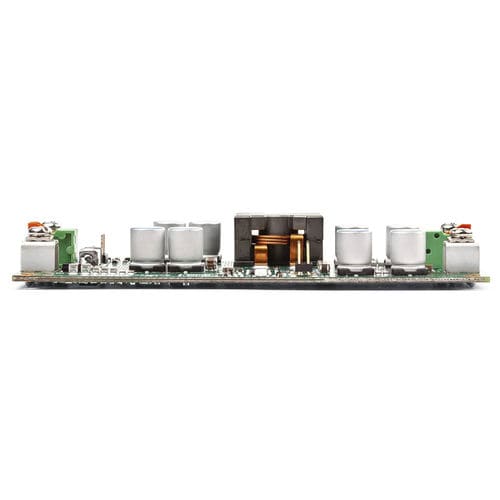

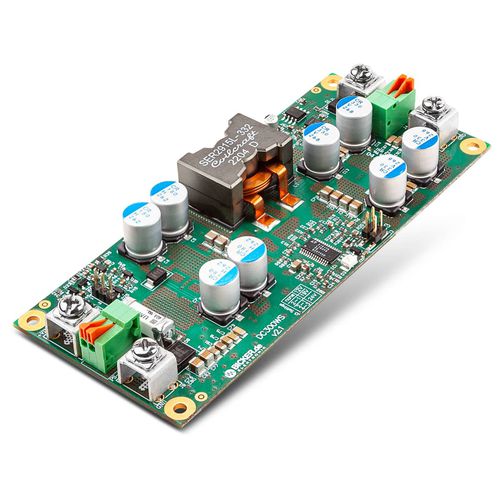

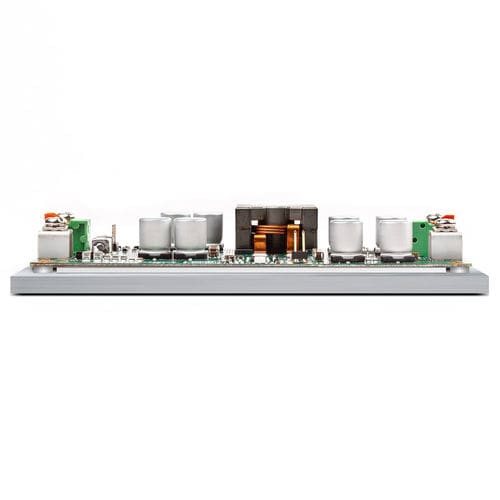

Fanless industrial 300 Watt DC/DC converter with wide range input 6–36 V and three selectable output voltages of 12V / 19V or 24V. The DC/DC converter DC300WS delivers fanless 300 watts continuous power at a constant high efficiency of up to 98%. In addition to the ultra-wide input range of 6 to 36 VDC, the compact converter offers three jumper-selectable output voltages of 12, 19 or 24 VDC, so that virtually any equivalent single-voltage mainboard or computer system can be powered..
– Powerful DC/DC converter
– Ultra wide input range 6…36VDC
– Adjustable output voltage +12V, +19V or +24V
– Very compact design W/H/D 132mm/17mm/56mm
– Full performance in the extended temperature range of -20°…+60°C
– Very high efficiency up to 98%
– More than 10 years capacitor lifetime
– Optional output voltage compensation via sense lines
– Optional Remote On/Off

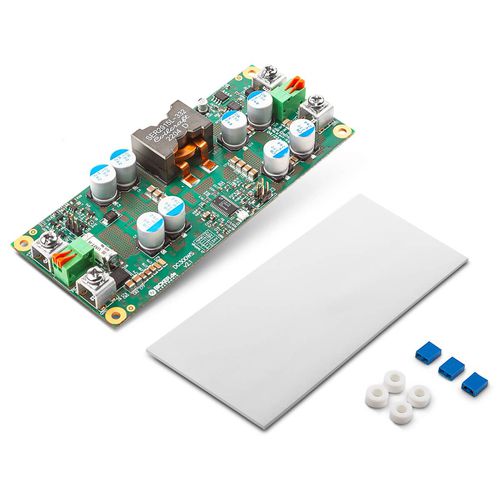

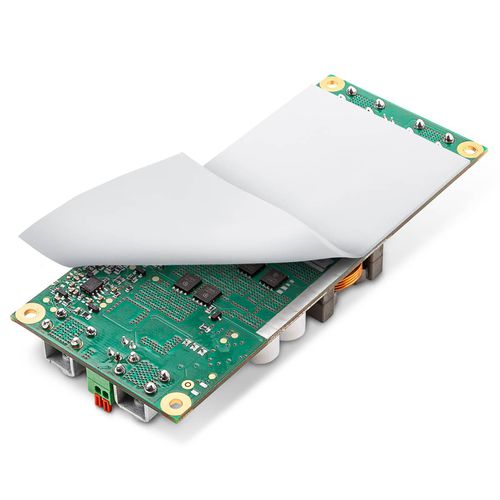

– Incl. thermal pad, jumper and distance bolts
توضیحات:
Configuration
open-frame
Electrical characteristics
buck, non-isolated, power, step-up
Applications
industrial, for industrial networks, for medical applications
Other characteristics
compact, wide input range, adjustable, triple-output, with overheating protection, with overcurrent protection, Buck-Boost, configurable, with overvoltage protection, low-profile, variable-output, slim
Input voltage
Max.: 36 VMin.: 6 V
Output voltage
12 V, 19 V, 24 V
Power
300 W
