نام محصول:
ماژول فتوولتائیک
نام انگلیسی:
Photovoltaic module MIH series
برند:
MH GoPower Co., Ltd.
مشخصات:
the only photovoltaic receiver product line capable of delivering a
wide range of power and voltage outputs. Power output levels range from tens of milliwatts to
hundreds of watts, while output voltage levels are possible from 4 volts to over 30 volts (higher

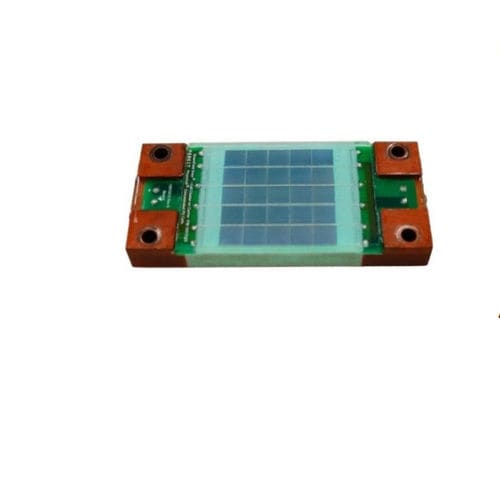

voltages possible by wiring VMJ PV cells in sériés). MHGP’s Cell-Module is constructed by
paralleling 25 standard 10mm x 10mm cells together. The Cell-Module product line operates most
efficiently with wavelengths in the range of 900 nm to 1,000 nm.The YCH-H300M is MHGP’s standard Cell-Module product offering, suitable for applications requiring power up to 300 watts when active cooling available. Note: higher power output is also possible with good thermal management (performance of the VMJ PV Cell-Module will drop ~3% for every 10°C increase in temperature). Target applications include dense array PV receivers for laser power beaming (including powering UAVs, aerospace applications, and remote ground based sensors), and for high power, power over fiber applications. Features of target applications include need for remote power delivery, or high voltage isolation, or need to operate in high voltage or high EMI environments.
Key Features:
High efficiency Si-based MIH® VMJ PV cell
Efficiency with 975nm laser up to 34% at 15 W/cm2
High voltage density: 30V standard 10mm x 10mm cells
High temperature durability (up to 120°C opération)
Optimal efficiency with 9xxnm lasers
High thermal conductivity copper substrate
Applications:
Unmanned Aerial Vehicles
Remote sensor charging
Wireless Power Transmission
توضیحات:
Peak power (Wp)
65.1 W, 136.6 W, 195.4 W, 239.6 W, 279.2 W
