نام محصول:
ماژول خورشیدی Silicon PV مونوکریستالی
نام انگلیسی:
Monocrystalline silicon PV solar module NQR256A
برند:
Sharp Solar
مشخصات:
– The innovative solution (Back Contact)
– Outstanding module efficiency (19.8%)
– Back Contact: More efficient conversion of solar radiation by placing the contacts on the back of the cell
– 48 cells for for compact dimensions (1,318 x 980 x 46 mm) and easy handling on the roof
– Proven quality (VDE IEC/EN 61215 + IEC/EN61730, Safety Class II, CE, Application Class A, DIN EN 13501-1 (class E)
– Endorsed with the Good Design Award
– Reliable Guarantee (10 years product guarantee, 25 years linear power output guarantee)
– Guaranteed positive power tolerance (at least the specified value and up to 5 % more is achieved)
Overview
BACK CONTACT FOR MAXIMUM EFFICIENCY AND RELIABILITY
More efficient conversion of solar radiation by placing the contacts on the back of the cell:
– Wires on the front side of a panel reflect sunlight and approximately 6% of received light remains unused
– Sharp’s back contact technology is reducing the losses due to reflection

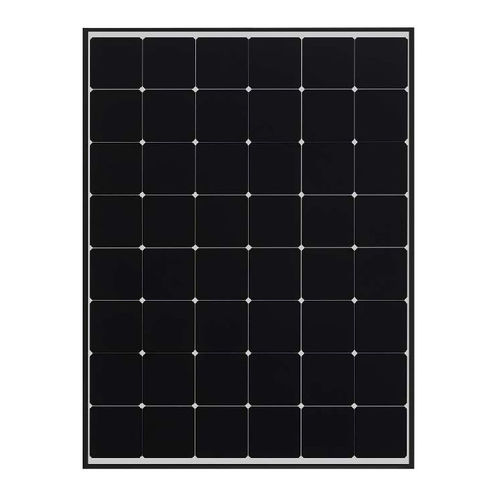

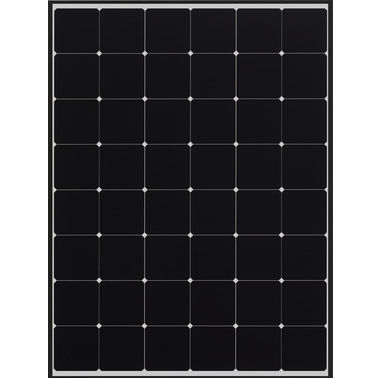

48 CELLS FOR EASY HANDLING
With a dimension of 1318×980 mm and weighing 17kg, the module is more compact and lightweight and therefore easier to handle on the roof compared to a 60 cell module.
PORTRAIT OR LANDSCAPE ORIENTATION FOR MAXIMUM FLEXIBILITY
The module can be mounted either on the long or on the short frame side. This increases the flexibility of the arrangement of the panels and you can exploit any roof surface optimally.
AWARD-WINNING MODULE DESIGN
The back contact module from Sharp has been won the “Good Design Award”. The award has been presented since 1957 for outstanding design by the Japan Institute for Design Promotion and is the most important design award in Asia.
توضیحات:
Material
monocrystalline silicon
Certifications
CE
Other characteristics
black, roof-mount
Peak power (Wp)
256 W
