نام محصول:
لیوان بینایی سوپاپ
نام انگلیسی:

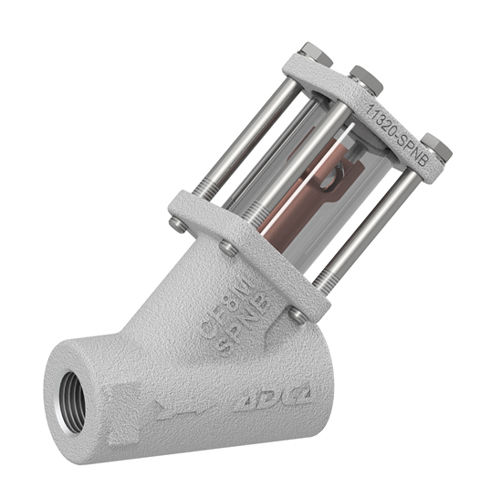

Check-valve sight glass SCKi
برند:
VALSTEAM ADCA Engineering S.A.
مشخصات:
The SCKi sight checkers function as both sight glasses and check valves.
Such devices are designed for installation downstream of steam traps, to monitor their performance, while also working as reliable check valves to prevent condensate backflow.
Condensate lines, downstream of steam traps.
SCKi – stainless steel.
CONNECTIONS:
Threaded ISO 7 Rp or NPT
Horizontal or vertical (bottom to top) installation. See IMI – Installation and maintenance instructions. The SCKi should be fitted at least 1 meter away from the trap, in order to protect the glass from thermal pressure or shock.
توضیحات:
Specifications
for check-valves, stainless steel
Temperature
150 °C(302 °F)
Operating pressure
10 bar(145 psi)
